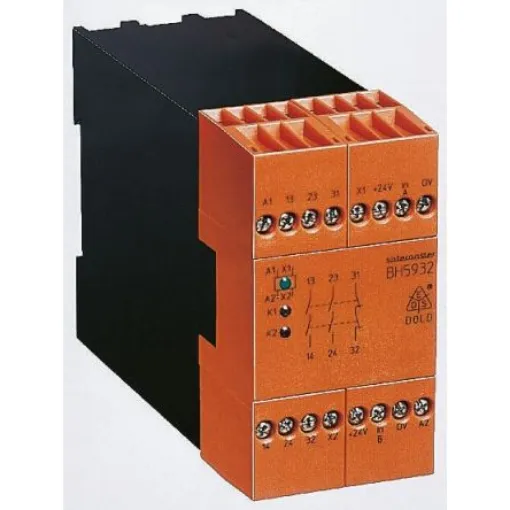

Dold Safemaster BH 5932 Safety Relay, 24V dc, Dual-Channel, 3 Safety Contacts - BH5932.22 DC24V 15IPM
Ensure machine safety with Dold's dual-channel safety relay for reliable standstill monitoring.
Manufacturer part number: BH5932.22 DC24V 15IPM
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1. BH5932 standstill monitor for safety circuits. In accordance with EN 60 204-1 Safety category 3 in accordance with EN 954 2-channel design Initiator control LED displays for operating voltage Force guided contacts 2 NO, 1 NC Overall width 45 mm The device LEDs light up when the corresponding channel detects a standstill. However, the output contacts are only activated if both channels detect the standstill within two seconds An example circuit for safety control in connection with the emergency stop module BD5935.48 (RS stock no. ; 240-8709 240-8709 ) is included with the device. The BH5932 monitors rotating parts for standstill. For instance, this device can be used to make sure the safety door on a machine cannot be opened until the machine is at standstill. The two-channel design prevents failure causes such as wire breakage or initiator malfunction.
