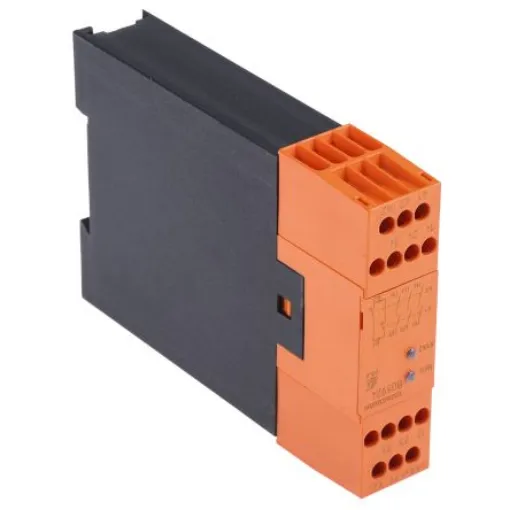

Dold Safemaster BG 5924 Emergency Stop Safety Relay, 24V dc, Single Channel, 4 Safety Contacts - BG5924.48 AC/DC24V
Ensure safety with the Dold BG 5924 Emergency Stop Relay featuring 4 safety contacts.
Manufacturer part number: BG5924.48 AC/DC24V
GTIN: 5060641250504
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24V dc
Number of Channels = 1
Safety Contacts = 4
Function = Emergency Stop
Range = Safemaster
Safety Category ISO 13849-1 = 2
PL ISO 13849-1 = d
SIL IEC 61508 = 2
Series = BG 5924mm
Performance Level = dmm
EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1. Emergency Stop Module, BG5924. Single-channel circuit Safety category conforms to EN 954 internal: 4 external: 2 Output: 3 NO / 1 NC for AC 250 V Operating status display LED display for channel 1//2 Short-circuit detection on Y1 22.5 mm overall width. The BG5924 is a highly compact safety switch device for the construction of emergency stop switches. It serves to protect personnel and machines in accordance with the EC directive for machines 89/392/EEC, IEC 204-1, EN 60204-1, DIN VDE 0113-1
