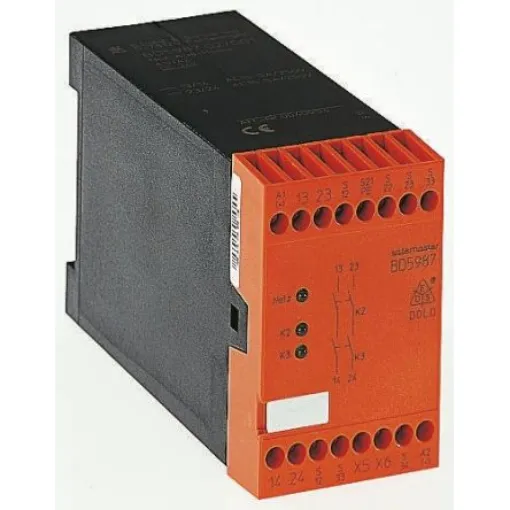

Dold Safemaster BD 5987 Emergency Stop Safety Relay, 24V dc, Single/Dual-Channel, 2 Safety Contacts - BD5987.02/001 DC24V
Ensure safety with the Dold Safemaster Emergency Stop Relay, featuring dual-channel functionality and reliable performance.
Manufacturer part number: BD5987.02/001 DC24V
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24V dc
Number of Channels = 1, 2
Safety Contacts = 2
Function = Emergency Stop
Range = Safemaster
Safety Category ISO 13849-1 = 4
PL ISO 13849-1 = e
SIL IEC 61508 = 3
Terminal Type = Screw
Width = 45mm
Length = 74mm
EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1. BG, SUVA, SA (Sweden), UL, CSA. Emergency stop module, BD5987.02 / 001. Machine emergency stop switches Monitoring sliding grill guards SK 4 (with equivalent switching) Output: 2 N/Os for AC 250 V 1 or 2-channel configuration Line termination detection on the ON button Optional: cross-fault detection in the emergency stop control circuit Optional: automatic on-function when operational voltage is met or system is activated with the ON button LED displays for channel 1 and channel 2 and operational mode Control loop for monitoring external contactors. Protection of humans and machines in accordance with: EC Directive on Machines 89/392/EEC, IEC 204, EN 60204, DIN VDE 0113
