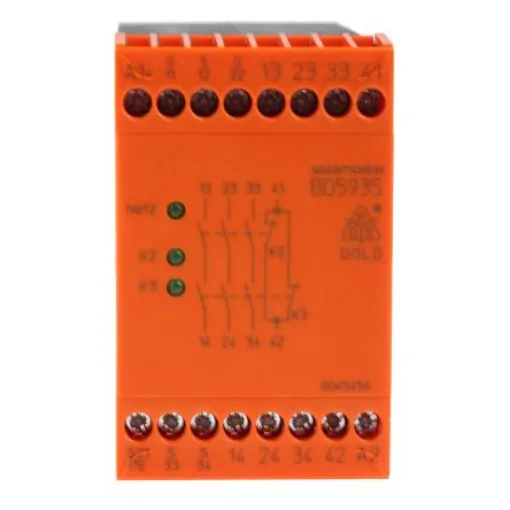

Dold Safemaster BD 5935 Emergency Stop Safety Relay, 24V dc, Single/Dual-Channel, 4 Safety Contacts - BD5935.48 DC24V
Ensure safety with the Dold Safemaster BD 5935 Emergency Stop Relay featuring 4 safety contacts and dual-channel functionality.
Manufacturer part number: BD5935.48 DC24V
GTIN: 4030641454562
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24V dc
Number of Channels = 1, 2
Safety Contacts = 4
Function = Emergency Stop
Range = Safemaster
Safety Category ISO 13849-1 = 4
PL ISO 13849-1 = e
SIL IEC 61508 = 3
Terminal Type = Screw
Series = BD 5935mm
Length = 74mm
EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1. BG. Emergency Stop Module, BD5935.48. Machine emergency stop switches Monitoring sliding grill guards SK 4 (with equivalent switching) Ultra compact unit (width 45 mm) Output: 3 N/Os, 1 N/C 1 or 2-channel configuration Line termination detection on the ON button Programmable: cross-fault detection in emergency stop-control loop Programmable: automatically comes on when operational voltage is applied or activation must happen with the ON button LED indicators for channels 1 and 2 Option to monitor external protection Removable terminals Protection of humans and machines in accordance with: EC Directive for Machines 89/392/EEC, IEC 204 T 1, EN 60204 T 1, DIN VDE 0113
