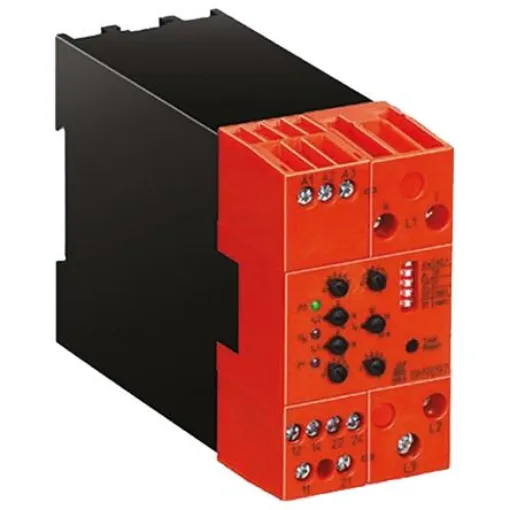

Dold Phase Monitoring Relay, 3 Phase, SPDT, DIN Rail - BH9097.38/001 3AC400V AC40A
Monitor electrical loads efficiently with Dold's Phase Monitoring Relay, designed for industrial drive systems.
Manufacturer part number: BH9097.38/001 3AC400V AC40A
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
IEC 255, EN 60255, VDE 0435 part 303. Load monitor BH 9097. The load monitor is suitable for monitoring electrical industrial drive systems with variable motor loads. Features:. The BH 9097 load monitor monitors the actual power consumption of electrical loads The device can be configured via DIP switches for negative load and overload monitoring or for overload monitoring with preliminary warning level P1 and P2 settings are calibrated as absolute values; configuration via two rotary switches Test / reset buttons for simple start-up Switch state indicator via 2 LEDs For motors up to 22 KW at 3 AC 400 V, without auxiliary voltage Up to 40 A without external current transformer Configurable start-up bridging, configurable response delay Overall width 45 mm
