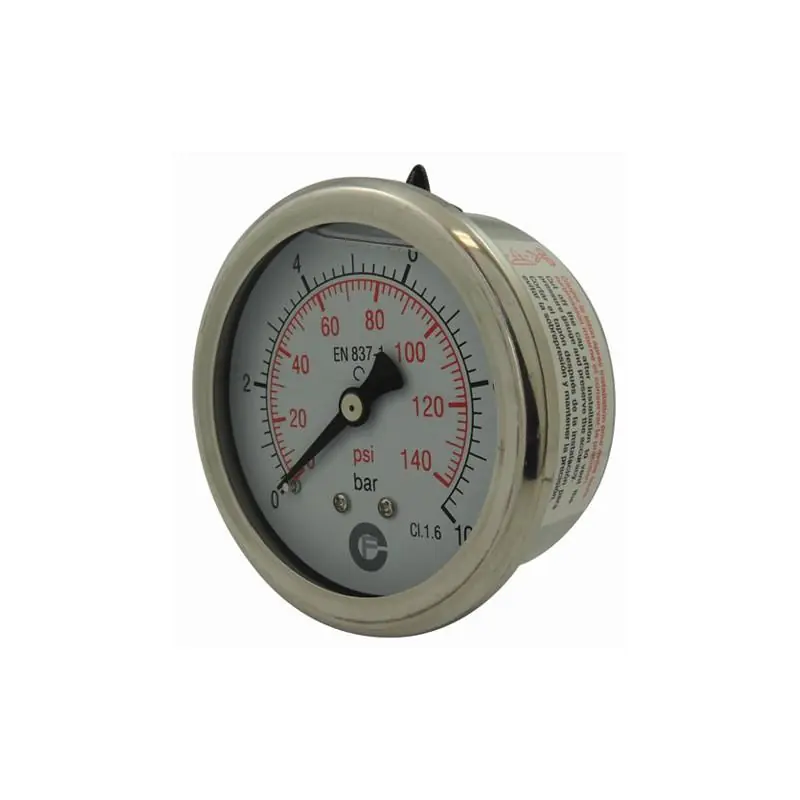

The Dold Mechatronik Glycerine Manometer is a precision instrument designed for accurate pressure measurement in systems subjected to dynamic pressure loads and vibrations. Its glycerine filling ensures damping of pressure fluctuations, enhancing the durability and reliability of the gauge.
- Glycerine Filling: Provides damping for high dynamic pressure loads and vibrations.
- Axial Connection: Rear, centric connection with G 1/4" BSP thread.
- Durable Construction: Plastic housing with front flange and PMMA window.
- High-Quality Mechanism: Copper alloy Bourdon tube mechanism.
- Temperature Range: Suitable for medium temperatures from -20°C to +60°C.
- Accuracy: Class 2.5, with a scale division value of 0.1 bar.
Technical Specifications
- Measuring Range: -1 to +1.5 bar
- Dial Diameter: 63 mm
- Connection Type: Axial, G 1/4" BSP
- Housing Material: Plastic, black with front flange
- Window Material: PMMA (Acrylic)
- Sensing Element: Copper alloy Bourdon tube
- Pointer Mechanism: Copper alloy
- Dial: White lacquered aluminum with black numerals
- Hand: Black lacquered aluminum with chrome-plated center
- Window Type: PMMA, welded to housing
- Operating Temperature: Medium: -20°C to +60°C; Ambient: -20°C to +60°C
- Protection Class: IP 65
- Overpressure Limit: 25% of full scale value
- Temperature Drift: ±0.4% per 10°C deviation from reference temperature (20°C ±2°C)
- Weight: 0.16 kg
Materials
- Housing: Plastic, black with front flange
- Window: PMMA (Acrylic)
- Sensing Element: Copper alloy Bourdon tube
- Pointer Mechanism: Copper alloy
- Dial: White lacquered aluminum with black numerals
- Hand: Black lacquered aluminum with chrome-plated center
Compatibility Information
This manometer is suitable for measuring pressure in systems where the process fluid is gaseous or liquid, non-viscous, and non-crystallizing, and does not attack copper alloys. It is ideal for installations subjected to vibrations or pressure pulsations.
