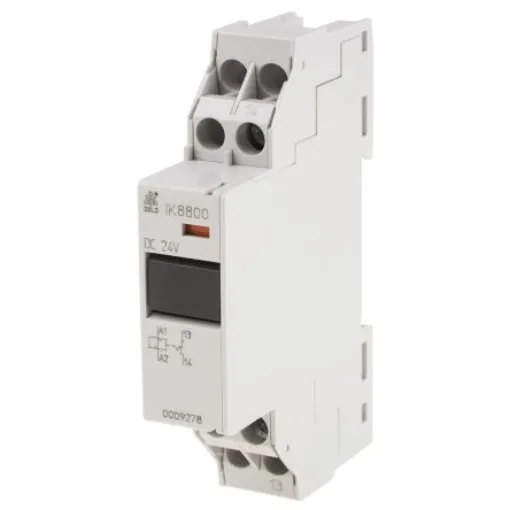

Dold DIN Rail Latching Power Relay, 24V dc Coil, 16A Switching Current, SPST - IK8800.01 DC24V
Reliable 24V DC latching power relay with SPST configuration for efficient switching.
Manufacturer part number: IK8800.01 DC24V
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
IK8800 - remote switch. Push-button action Switch position indication Optional contact assignments 1 NO or 1 CO 17.5 mm overall width. Each current pulse actuates the IK8800 remote switch's contacts, which then remain in the adopted position until the next current pulse. A button on the device makes it possible to actuate the contacts by hand. The contact position is displayed by an indicator mark. The devices can be mounted next to one another for pulse operation. The mounting distance between the relays is 7 mm for continuous operation
