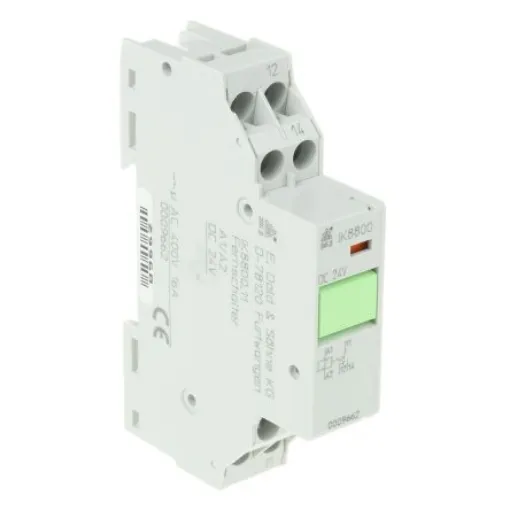

Dold DIN Rail Latching Power Relay, 24V dc Coil, 16A Switching Current, SPDT - IK8800.11 DC24V

Dold Remote SwitchThe Dold remote switch has one changeover contact and switching current rating of 16A. It has an impulse operation that offers low energy consumption. This relay requires a small amount of wiring at installations with serval local pushbuttons. It is possible to actuate the contacts manually by pressing a pushbutton provided on the unit. The contact position is shown by an indicator. The units can be installed in rows next to each other at 7mm separation for continuous operation.Features and BenefitsOperating position display Operating temperature ranging between -20°C and 45°C Optionally contacts with up to a maximum of 4 changeover contacts Pushbutton for manual actuation of the contacts SPDT contact configuration Width is 17.5mmApplicationsAnti-condensation equipment Car washing equipment Coffee machines Commercial cooking equipment Driers and pumps HVAC Industrial cleaning equipment RefrigerationCertificationsIEC 60 664-1 IEC/EN 60 947-5-1 IEC/EN 61 000-4-2 IEC/EN 61 000-4-4 IEC/EN 61 000-4-5 IEC/EN 61 000-4-6 IP20 rated terminals IP30 rated housing
