DOGA Geared DC Geared Motor, 20 W, 12 V dc, 5 Nm, 40 rpm - 3808633
Powerful 20W geared DC motor with 5Nm torque and 40rpm speed, ideal for diverse applications.
Manufacturer part number: 3808633
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 12 V dc
DC Motor Type = Geared
Power Rating = 20 W
Output Speed = 40 rpm
Maximum Output Torque = 5 Nm
Gearhead Type = Worm
Dimensions = 178 x 60 x 100.6 mm
Current Rating = 5 A
Length = 178mm
Width = 60mm
Depth = 100.6mm

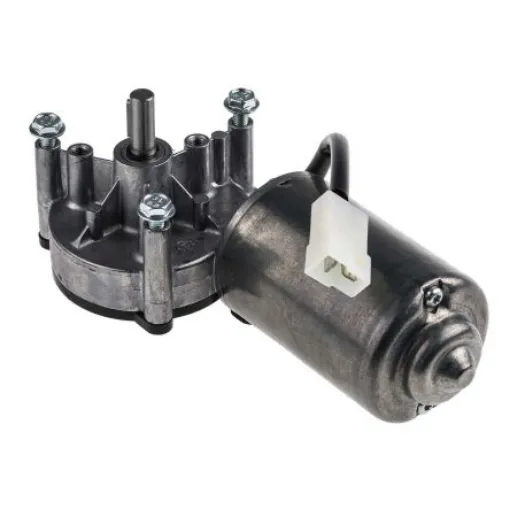

Type 111 Geared dc Motors. DC motors are most commonly used in variable speed and torque applications. The range of IP 53 Doga DC motors are powered by direct current from a battery or DC power supply. Worm gears are used when large gear reductions are needed. The worm gear is useful for a comprehensive range of applications, such as conveyor systems, in which the locking feature can act as a brake for the conveyor when the motor is not turning.
