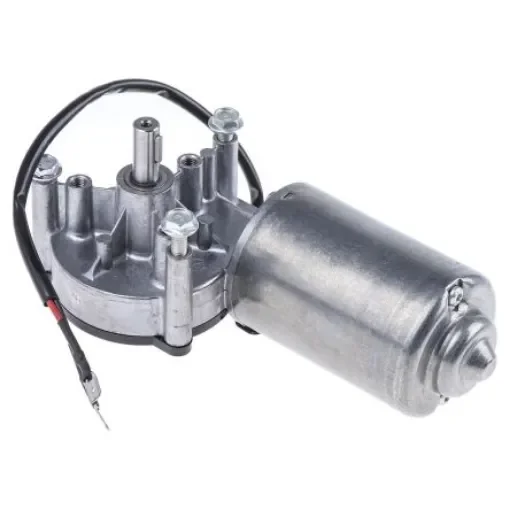

DOGA Brushed Geared DC Geared Motor, 24 V dc, 20 Nm, 3 Nm, 100 rpm, 10mm Shaft Diameter - 111.9199.30.00
High-performance Doga DC motor with 20Nm torque and 100rpm speed, ideal for diverse applications.
Manufacturer part number: 111.9199.30.00
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24 V dc
DC Motor Type = Brushed Geared
Output Speed = 100 rpm
Shaft Diameter = 10mm
Maximum Output Torque = 20 Nm, 3 Nm
Gearhead Type = Worm
Dimensions = 178 x 60 x 100.6 mm
Current Rating = 24 A, 3 A
Length = 178mm
Width = 60mm
Depth = 100.6mm
Core Construction = Iron Core
Type 111 Geared dc Motors. DC motors are most commonly used in variable speed and torque applications. The range of IP 53 Doga DC motors are powered by direct current from a battery or DC power supply. Worm gears are used when large gear reductions are needed. The worm gear is useful for a comprehensive range of applications, such as conveyor systems, in which the locking feature can act as a brake for the conveyor when the motor is not turning.
