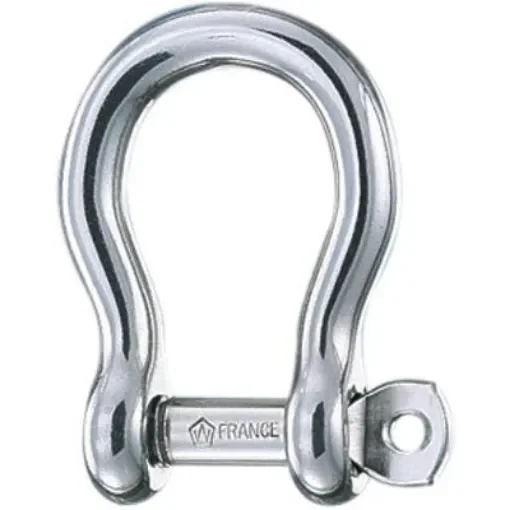

The Wichard Self-Locking Bow Shackle is a high-quality marine hardware component designed to provide secure and reliable connections in various applications. Crafted from grade 316L stainless steel, it offers exceptional strength and resistance to corrosion, making it ideal for marine environments.
- Self-Locking Mechanism: The shackle features a self-locking pin that engages with indentations in the shackle body, preventing accidental unscrewing due to vibrations.
- Durability: Constructed from 316L stainless steel, the shackle ensures long-lasting performance and resistance to marine corrosion.
- Versatility: Suitable for various marine and industrial applications, the shackle allows for the attachment of multiple lines or cables, providing flexibility in usage.
Technical Specifications:
- Working Load Limit (WLL): 320 kg (705 lbs) for nautical applications; 140 kg (309 lbs) for industrial applications.
- Breaking Load: 700 kg (1,543 lbs).
- Dimensions:
- Inside Length (A): 18 mm (0.71 inches)
- Inside Width (B): 8 mm (0.31 inches)
- Pin Diameter (C): 4 mm (0.16 inches)
- Total Length (M): 21 mm (0.83 inches)
- Weight: 9 grams (0.02 lbs).
Materials: Grade 316L Stainless Steel
Compatibility Information: Designed for use in marine and industrial settings where secure and reliable connections are required.
