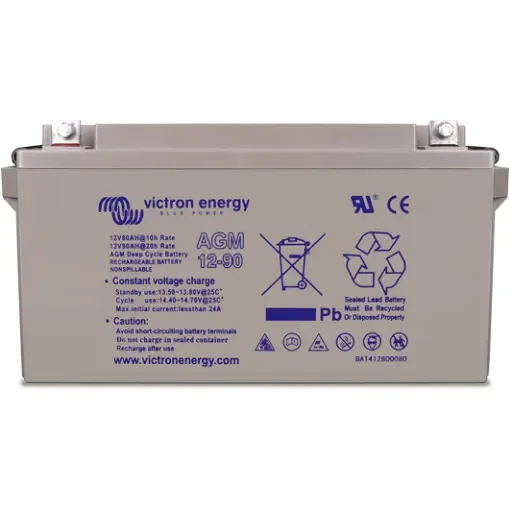

Divers - Victron Energy AGM Deep Cycle Battery 90Ah - BAT412800084

Key Features:

• VRLA Technology: Valve Regulated Lead Acid (VRLA) design ensures the battery is sealed, with gas escaping only through safety valves in cases of overcharging or cell failure. This design makes the battery maintenance-free for life.
• AGM Construction: Absorbent Glass Mat (AGM) technology involves the electrolyte being absorbed into a glass-fiber mat between the plates by capillary action. This construction allows for short-time delivery of very high currents, such as engine starting, making AGM batteries more suitable than gel batteries for such applications.
• Low Self-Discharge: Utilizing lead-calcium grids and high-purity materials, Victron VRLA batteries have a self-discharge rate of less than 2% per month at 20°C. This low rate allows for storage periods of up to a year without recharging, provided the batteries are kept under cool conditions.
• Exceptional Deep Discharge Recovery: The batteries exhibit exceptional recovery even after deep or prolonged discharges. However, repeated deep and prolonged discharges can negatively affect the service life of the battery.
• Design Life: The AGM range has a design life of 7-10 years.
• Compliance and Warranty: The batteries comply with CE and UL specifications and are housed in ABS fireproof containers. They come with a two-year worldwide warranty from Victron.

Technical Specifications:

• 12V / 14Ah Model (BAT212120086):
  • Voltage: 12V
  • Capacity: 14Ah
  • Dimensions: 151mm (L) x 98mm (W) x 101mm (H)
  • Weight: 4.4kg
  • Terminal Type: M8
  • Terminal Layout: Left Hand Positive
  • Cold Cranking Amps (CCA): Not specified
  • Warranty: 2 Years
• 12V / 90Ah Model (BAT412800084):
  • Voltage: 12V
  • Capacity: 90Ah
  • Dimensions: 350mm (L) x 167mm (W) x 183mm (H)
  • Weight: 27kg
  • Terminal Type: M8
  • Terminal Layout: Left Hand Positive
  • Cold Cranking Amps (CCA): 400
  • Warranty: 2 Years
• 12V / 165Ah Model (BAT412151084):
  • Voltage: 12V
  • Capacity: 165Ah
  • Dimensions: 485mm (L) x 172mm (W) x 240mm (H)
  • Weight: 47kg
  • Terminal Type: M8
  • Terminal Layout: Left Hand Positive
  • Cold Cranking Amps (CCA): 1200
  • Warranty: 2 Years
• 12V / 220Ah Model (BAT412201084):
  • Voltage: 12V
  • Capacity: 220Ah
  • Dimensions: 522mm (L) x 238mm (W) x 240mm (H)
  • Weight: 65kg
  • Terminal Type: M8
  • Terminal Layout: Left Hand Positive
  • Cold Cranking Amps (CCA): Not specified
  • Warranty: 2 Years

Materials:

• Container Material: ABS (Acrylonitrile Butadiene Styrene) plastic, known for its strength and resistance to impact and heat.
• Terminals: M8 drilled, flat copper terminals ensure optimal connection and eliminate the need for additional battery terminals.

Dimensions:

• 12V / 14Ah Model: 151mm (L) x 98mm (W) x 101mm (H)
• 12V / 90Ah Model: 350mm (L) x 167mm (W) x 183mm (H)
• 12V / 165Ah Model: 485mm (L) x 172mm (W) x 240mm (H)
• 12V / 220Ah Model: 522mm (L) x 238mm (W) x 240mm (H)
