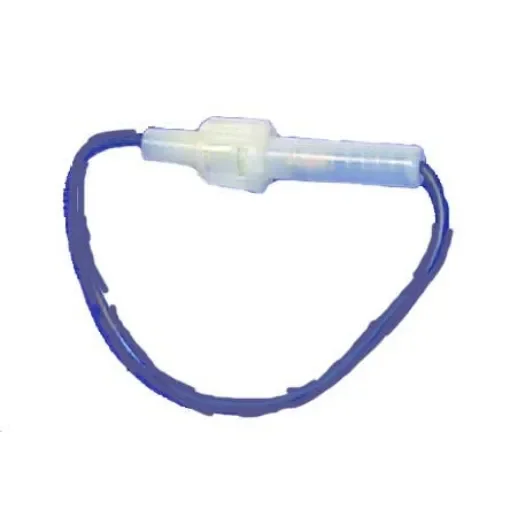

The Sealed Fuse Holder for Tab Fuse up to 30A is a reliable and durable component designed to protect electrical circuits in marine and boating applications. This fuse holder accommodates plug-in fuses ranging from 2 to 30 amperes, ensuring optimal safety and performance.
- Compatibility: Designed for plug-in fuses with a size of 6.35 mm.
- Voltage Rating: Suitable for use with voltages up to 32 V.
- Current Rating: Supports fuses up to 30 A, providing flexibility for various applications.
- Cable Specifications: Equipped with two output wires, each with a cross-sectional area of 4 mm², ensuring robust electrical connections.
- Cable Length: Each wire measures 130 mm, offering sufficient length for installation in various setups.
- Material: Constructed from red thermoplastic, providing durability and resistance to environmental factors.
- Design: Features a translucent cover with a seal, enhancing protection against moisture and contaminants.
- Mounting: Designed for screw fixing with a diameter of 5.5 mm, facilitating secure installation.
Technical Specifications
- Fuse Size: 6.35 mm
- Maximum Voltage: 32 V
- Maximum Current: 30 A
- Cable Diameter: 4 mm²
- Cable Length: 2 x 130 mm
- Insulation Resistance: 100 MΩ/min at 500 V DC
- Insulation Resistance at Voltage: 2,000 V - r.m.s/min
Materials
- Housing: Red thermoplastic
- Cover: Translucent with seal
- Wires: 4 mm² cables
Dimensions
- Fuse Size: 6.35 mm
- Cable Length: 2 x 130 mm
- Mounting Hole Diameter: 5.5 mm
Compatibility Information
This fuse holder is compatible with standard plug-in fuses measuring 6.35 mm, suitable for applications requiring up to 30 A at voltages up to 32 V. It is ideal for marine environments, offering protection against moisture and contaminants.
