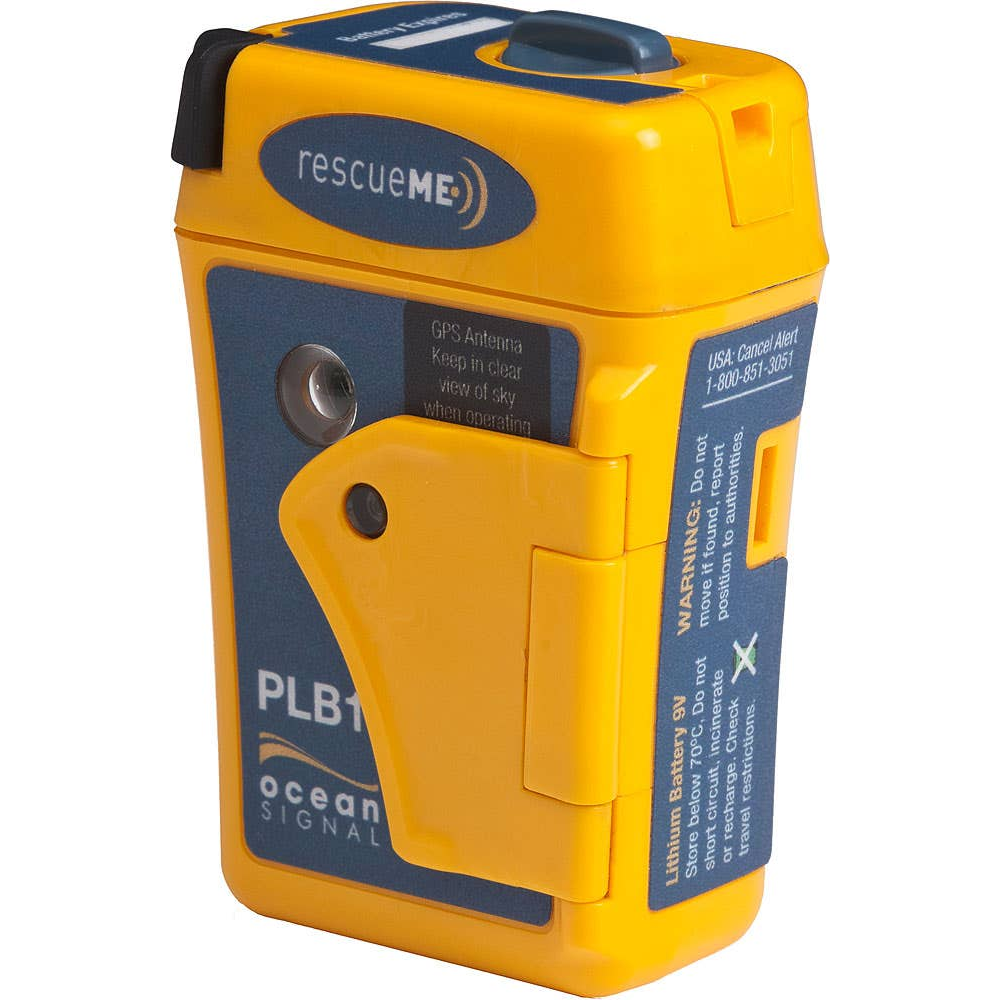

The RescueMe PLB1 Personal Locator Beacon (PLB) is a compact and reliable device designed to alert emergency services of your location, whether you're on land or at sea. Operating on the globally recognized Cospas-Sarsat satellite network, the PLB1 ensures prompt assistance without any subscription fees.
- Compact Design: Approximately 30% smaller by volume compared to typical PLBs, making it easy to carry and deploy.
- Waterproof: Submersible up to 15 meters, ensuring functionality in various aquatic environments.
- Retractable Antenna: Facilitates easy deployment and storage.
- High-Intensity Strobe Light: Provides enhanced visibility with an output of over 1 candela.
- 66-Channel GPS Receiver: Offers rapid and accurate position acquisition.
- Long Battery Life: Features a 7-year battery life with over 24 hours of operational life at -20°C.
- No Subscription Fees: Utilizes the Cospas-Sarsat system, which is funded by governments and free for users.
Technical Specifications
- 406 MHz Satellite Transmitter:
- Frequency: 406.040 MHz
- Output Power: 5 watts (nominal)
- Modulation: Phase ±1.1 radians (peak)
- Data Rate: 400 bps
- Duration: 520 ms
- 121.5 MHz Homing Beacon:
- Frequency: 121.5 MHz
- Output Power: 25-100 mW
- Modulation: Swept Tone AM
- Sweep Range: 400 Hz – 1300 Hz
- GPS Receiver:
- Sensitivity (Cold Start): -148 dBm
- Sensitivity (Re-acquisition): -163 dBm
- Channels Tracked: 60
- Antenna: Microstrip patch
- Battery:
- Type: Lithium Primary
- Chemistry: Manganese Dioxide (LiMnOâ‚‚)
- Operational Life: >24 hours at -20°C
- Environmental:
- Operating Temperature Range: -20°C to +55°C
- Storage Temperature Range: -30°C to +70°C
- Waterproof: 15 meters at +20°C
- Drop: 1 meter at -30°C
Materials
The RescueMe PLB1 is constructed with durable materials to withstand harsh environments, including a robust housing that ensures waterproofing and impact resistance.
Dimensions
- Height: 77 mm (3.0 inches)
- Width: 51 mm (2.1 inches)
- Depth: 32.5 mm (1.3 inches)
- Weight: 116 grams
Compatibility Information
The RescueMe PLB1 is designed for universal compatibility and can be easily attached to life jackets, belts, or backpacks. It is suitable for marine, aviation, and outdoor activities. An optional flotation pouch is available to enable the PLB to float; however, the PLB will not float in an operating position within the pouch. Users should ensure the PLB is firmly attached to the pouch with the provided lanyard, using suitable self-locking knots.
