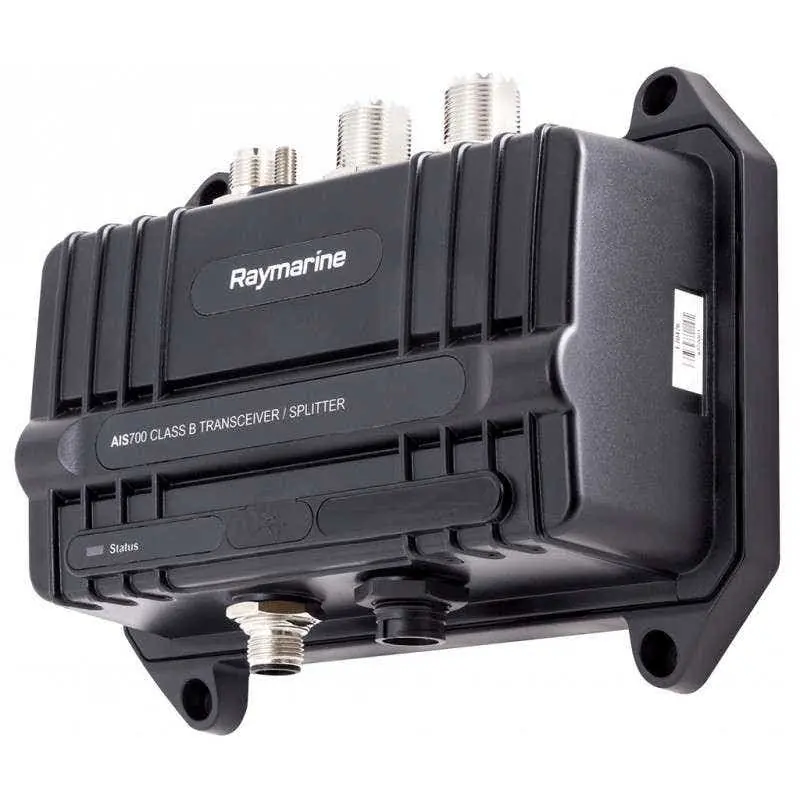

The Raymarine AIS700 is a Class B Automatic Identification System (AIS) transceiver designed to enhance maritime safety by enabling vessels to transmit and receive critical navigation information. This device is particularly suited for integration with Raymarine multifunction navigation display systems, providing comprehensive situational awareness.
- Full AIS Transmission and Reception: Allows vessels to both receive broadcasts from other ships and transmit their own information, enhancing visibility and safety on the water.
- Advanced SO-TDMA Technology: Utilizes the latest Self-Organized Time Division Multiple Access (SO-TDMA) networking, offering longer range and faster performance compared to previous AIS technologies.
- Integrated Antenna Splitter: Features a built-in VHF antenna splitter, simplifying installation by allowing the use of a single antenna for both VHF radio and AIS functions.
- Multiple Compatibility Options: Supports NMEA2000, NMEA0183, PC interfaces, and SeaTalkng, ensuring seamless integration with various onboard electronics.
- Silent Mode Functionality: Provides both software and hardware switchable Silent Mode, enabling temporary cessation of vessel data transmission while continuing to receive information from surrounding traffic. This feature is particularly useful in sensitive situations or competitive scenarios.
Technical Specifications:
- Operating Frequency:
- Transmitting: 156.0 MHz to 162.025 MHz
- Receiving: 156.0 MHz to 174.0 MHz
- AIS Performance:
- Class B transceiver
- 5 W SOTDMA
- Channel Spacing: 25 kHz
- Receiver Quantity: 2
- Transmitter Quantity: 1
- GNSS (GPS) Compatibility: GPS and GLONASS
- Cold Start Acquisition Time: 26 seconds (nominal)
- GNSS Channels: 72
- Operating Voltage Range: 9.6 V DC to 31.2 V DC
- Power Consumption: 3 W
- Fuse Rating: 3 A
- Peak Current at 12 V DC: 2.5 A
- Nominal Supply Voltage: 12 V DC / 24 V DC
- Peak Current at 24 V DC: 1.25 A
- LEN (NMEA 2000 Load Equivalency Number): 1
The AIS700 is constructed with durable materials suitable for marine environments, ensuring longevity and reliable performance. Specific material details are not provided in the available sources.
Dimensions:
- Height: 132.55 mm (5.22 in)
- Width: 171.65 mm (4.81 in)
- Depth: 57 mm (2.24 in)
Compatibility Information:
The AIS700 is compatible with Raymarine multifunction navigation display systems and supports integration with other onboard electronics via NMEA2000, NMEA0183, PC interfaces, and SeaTalkng. It also features a USB 2.0 connection for integration with computers running AIS-compatible navigation software. Additionally, the device includes an SD memory slot for continuous recording of the AIS data stream.
