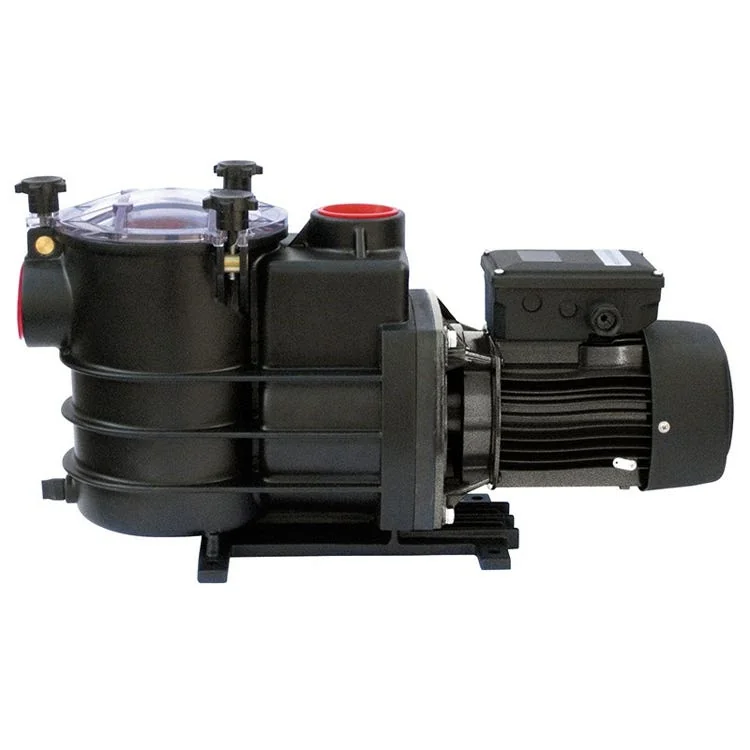

The PSH ND.2-24 Filtration Pump is a high-performance, self-priming pool pump designed to maintain crystal-clear water in in-ground pools. As an evolution of the ND.1 model, it offers enhanced filtration capacity and a modern design while maintaining full interchangeability with the previous model.
- Self-Priming Capability: Operates efficiently with a self-priming capacity up to 4 meters.
- Saltwater Compatibility: Suitable for use with salt chlorinators and seawater, ensuring versatility in various pool environments.
- Thermal Protection: Equipped with built-in thermal protection in single-phase versions to prevent overheating.
- High-Efficiency Motor: Features a 1.5 HP motor operating at 2900 rpm, available in both single-phase and three-phase configurations.
- Durable Construction: Constructed with high-quality materials, including reinforced polypropylene, Noryl, and AISI 316 stainless steel, ensuring longevity and reliability.
Technical Specifications
- Power: 1.5 HP (1.1 kW)
- Flow Rate: Up to 29.3 m³/h
- Inlet/Outlet Diameter: 2 inches (63 mm)
- Motor Speed: 2900 rpm (50Hz); also available at 60Hz
- Insulation Class: F
- Protection Rating: IP55
- Maximum Operating Temperature: 40°C
Materials
- Pump Housing: Polypropylene + 30% Glass Fiber
- Impeller and Diffuser: Noryl + 30% Glass Fiber
- Shaft: AISI 316 Stainless Steel
- Mechanical Seal: Carbon + Resin – Ceramic
- Prefilter Cover: Polycarbonate
- Prefilter Basket: Polypropylene + 5% Glass Fiber
Compatibility Information
The ND.2-24 Filtration Pump is fully interchangeable with the previous ND.1 model, maintaining the same dimensions between inlet and outlet connections, as well as height measurements.
