Key Features:

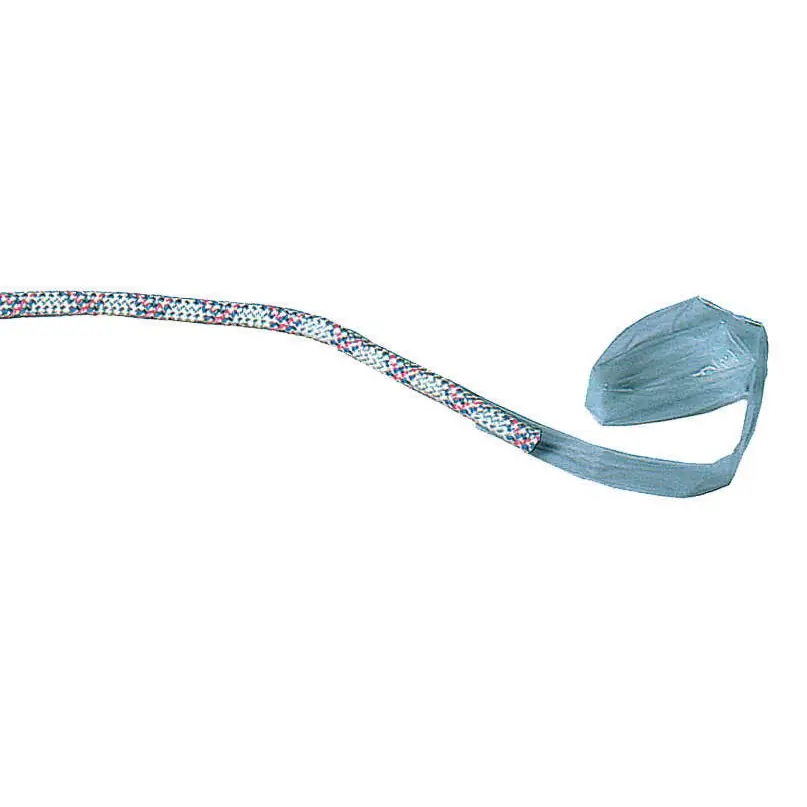

Transparent heat shrink tube designed for marking cords.
Suitable for cords with diameters ranging from 9mm to 11mm; can accommodate up to 12.5mm when heated moderately.
Shrinks most conveniently with a hairdryer; direct flame should be used with caution.
Caution: Do not store in heat or strong light, as the sleeve may shrink on its own.
Technical Specifications:
Shrink Ratio: 2:1
Material: Polyolefin, cross-linked (PO-X)
Operating Temperature: -55°C to +125°C
Flammability: UL 224 VW-1
Dielectric Strength: 20kV/mm
Elongation at Break: 400%
Tensile Strength: 14MPa
Volume Resistance: 10¹⁴ Ω·cm
Halogen-Free: No
Self-Extinguishing: Yes
RoHS Compliant: Yes
Materials:
Constructed from high-quality, cross-linked polyolefin for enhanced durability and performance.
Dimensions:
Length: 60cm
Supplied Diameter (D min.): 1.2mm
Recovered Diameter (d max.): 0.6mm
Wall Thickness (WT): 0.40mm
Compatibility Information:
Ideal for insulating and marking cords with diameters between 9mm and 11mm; can accommodate up to 12.5mm when heated moderately.
Suitable for use with a hairdryer for shrinking; direct flame should be used with caution.
