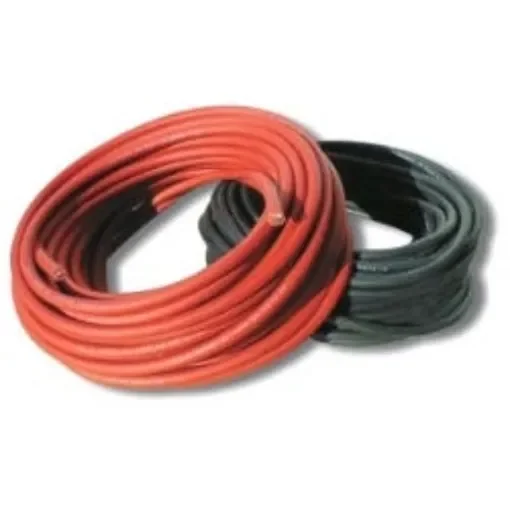

The Nexans HO7V-K 1.5mm² Flexible Electric Cable is designed for domestic installations and panel wiring. This single-core, flexible cable features a bare copper conductor insulated with PVC, offering high conductivity and durability. It is available in various colors, including red, black, blue, and brown, and is sold by the meter.
Key Features:
- Conductor Material: Bare copper, Class 5 flexible
- Insulation Material: PVC
- Voltage Rating: 450/750 V
- Temperature Range: Operating temperature from -5°C to +70°C; short-circuit temperature up to +160°C
- Flame Retardant: Category C2, compliant with NF C 32-070 and EN 50265-2-1 standards
- Compliance: Meets EN 50525-2-31, IEC 60228, IEC 60332-1-2, and RoHS directive 2011/65/EU
Technical Specifications:
- Conductor Cross-Section: 1.5 mm²
- Outer Diameter: 2.8 to 3.4 mm
- Approximate Weight: 19 kg/km
- Minimum Bending Radius: 6 times the cable diameter
- Packaging: Sold by the meter
Materials:
- Conductor: Bare copper, Class 5 flexible
- Insulation: PVC
Dimensions:
- Conductor Cross-Section: 1.5 mm²
- Outer Diameter: 2.8 to 3.4 mm
Compatibility Information:
Suitable for domestic installations and panel wiring, the Nexans HO7V-K 1.5mm² cable is compatible with standard electrical systems requiring flexible wiring solutions.
