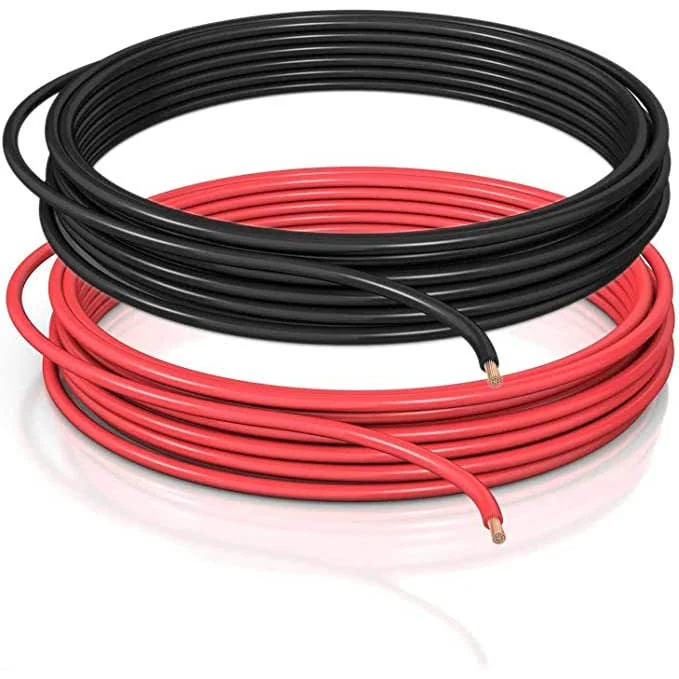

The Flexible Electric Cable - 35mm² Red is a single-conductor, highly flexible power and battery charger cable, ideal for various electrical installations. It is available in red and sold by the metre, allowing for customized lengths to suit specific requirements.
- Conductor Material: Bare copper core, Class 6, conforming to IEC 60228 standards.
- Insulation Material: PVC, providing reliable protection against electrical leakage and resisting corrosion and harsh environmental conditions such as moisture.
- Operating Temperature Range: -15°C to +70°C, suitable for a wide range of applications.
- Flame Propagation: Non-propagating (C2), enhancing safety in case of fire.
- Voltage Ratings:
- Rated Voltage: 450/750 V, suitable for low-voltage applications.
- Test Voltage: 2500 V, ensuring insulation integrity under high-voltage conditions.
- Compliance Standards: IEC 60228, NF C 32-070, IEC 60332-1-2, ensuring adherence to international safety and performance standards.
Technical Specifications:
- Conductor Cross-Sectional Area: 35mm²
- Conductor Stranding: Flexible, Class 6, facilitating easy installation in confined spaces.
- Insulation Thickness: Approximately 1.20 mm
- Overall Diameter: Approximately 10.00 mm
- Weight: Approximately 365 kg/km
- Resistance per Metre at 20°C: ≤0.554 Ω/km
Materials:
- Conductor: Bare copper, offering excellent electrical conductivity and flexibility.
- Insulation: PVC, providing durability and resistance to environmental factors.
Dimensions:
- Nominal Insulation Thickness: 1.20 mm
- Approximate Overall Diameter: 10.00 mm
Compatibility Information:
This cable is suitable for various applications, including:
- Power and battery charger installations
- Marine electrical systems
- Industrial machinery
- Automotive wiring
Its flexibility and compliance with international standards make it a reliable choice for both professional and DIY electrical projects.
