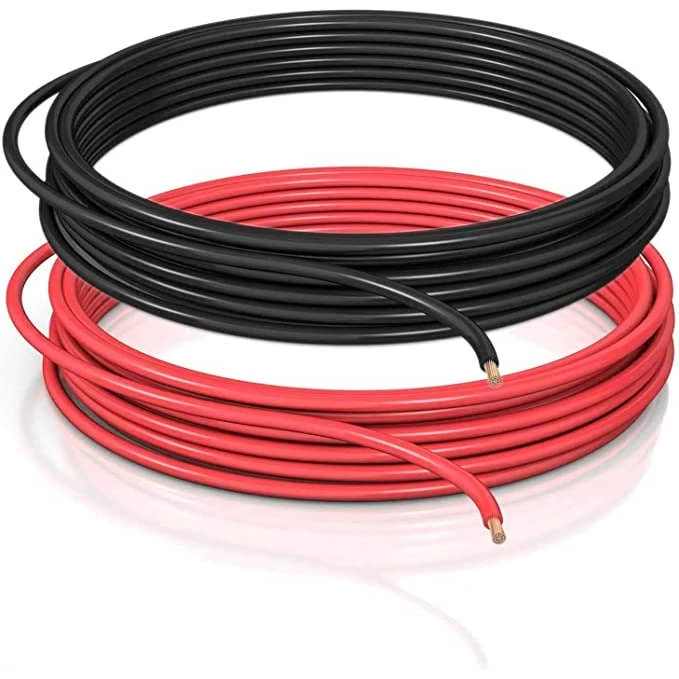

The Flexible Electric Cable - 25mm² is a single-conductor, highly flexible power and battery charger cable, available in black or red, and sold by the meter.
- Conductor Material: Bare copper core, Class 6, compliant with IEC 60228 standards.
- Insulation: Flame non-propagating C2, providing enhanced safety.
- Operating Temperature: Suitable for environments ranging from -15°C to +70°C.
- Voltage Ratings:
- Rated Voltage: 450/750 V.
- Test Voltage: 2500 V.
- Standards Compliance: Meets IEC 60228, NF C 32-070, and IEC 60332-1-2 standards.
Technical Specifications
- Conductor Size: 25 mm².
- Conductor Type: Flexible copper conductor.
- Insulation Material: Flame non-propagating C2.
- Operating Temperature Range: -15°C to +70°C.
- Voltage Ratings:
- Rated Voltage: 450/750 V.
- Test Voltage: 2500 V.
- Standards Compliance: IEC 60228, NF C 32-070, IEC 60332-1-2.
Materials
- Conductor: Bare copper, Class 6.
- Insulation: Flame non-propagating C2 material.
Compatibility Information
This cable is suitable for use in various applications requiring a flexible and durable electrical connection, including power and battery charger installations.
