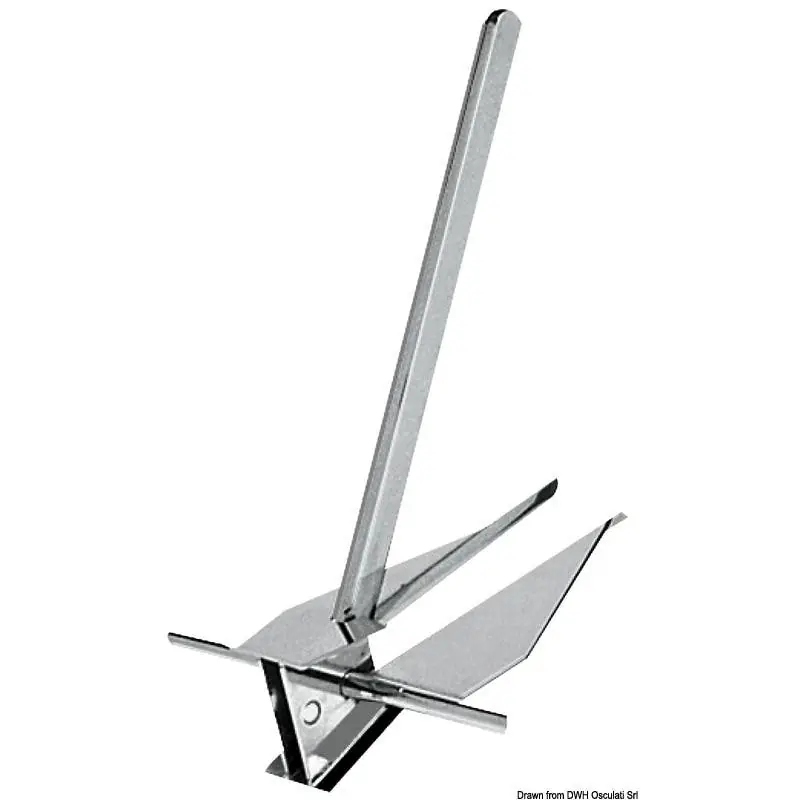

The Danforth Boat Anchor is a high-performance, mirror-polished AISI 316 stainless steel anchor designed for exceptional holding power in sandy and muddy seabeds. Its lightweight yet robust construction ensures easy handling and storage, making it suitable for boats ranging from 6 to 20 meters in length.
- Material: Crafted from mirror-polished AISI 316 stainless steel, offering superior corrosion resistance and durability.
- Design: Features two large triangular flukes attached to a tapered shank, allowing the flukes to orient toward the seabed at a 32-degree angle for optimal holding capabilities in common sea bottoms such as hard sand.
- Storage: The articulated arms deploy horizontally when submerged and fold vertically when lifted, facilitating easy onboard storage.
- Compatibility: Compatible with both chains and ropes, providing versatility in anchoring setups.
Technical Specifications
| Weight (kg) | A (mm) | B (mm) | C (mm) |
|---|
| 7 | 630 | 485 | 340 |
| 9 | 670 | 500 | 400 |
| 12 | 760 | 540 | 420 |
| 15 | 900 | 570 | 430 |
| 22 | 990 | 665 | 515 |
| 28 | 1080 | 695 | 550 |
Materials: Flukes and Shank: Mirror-polished AISI 316 stainless steel for enhanced corrosion resistance and durability.
Dimensions: Weight Options: Available in 7 kg, 9 kg, 12 kg, 15 kg, 22 kg, and 28 kg to accommodate various boat sizes.
Compatibility Information: Boat Size: Suitable for boats ranging from 6 to 20 meters in length. Seabed Conditions: Ideal for use in sandy and muddy seabeds; may not perform well in rocky or clay bottoms.
