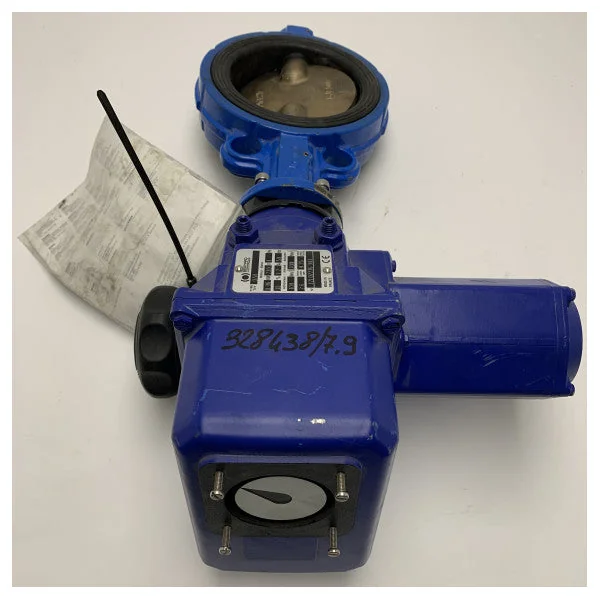

This high-quality marine disc valve with actuator is designed for efficient and reliable use in various marine applications. With a robust construction and simple operation, this product ensures a long lifespan and optimal performance, even under harsh conditions at sea.
- Body material: cast steel (A536)

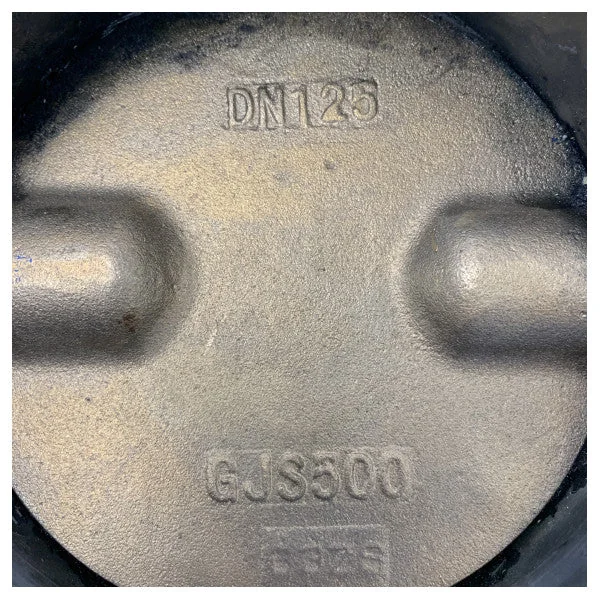

- Dimensions: DN125 (nominal diameter 125 mm)
- Pressure class: PN6, suitable for up to 16 bar

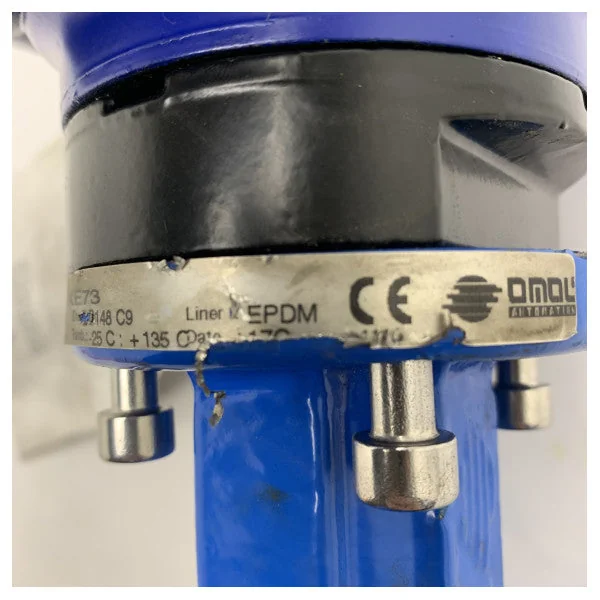

- Liner: resistant EPDM membrane for optimal sealing
- Operating temperature range: -25 to +135 degrees Celsius

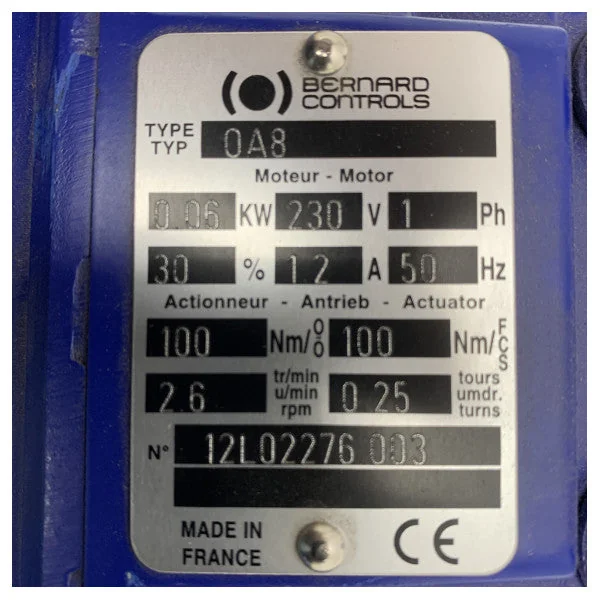

- Actuator supplied by Bernard Controls, 230V, 0.06 kW with a torque of 100 Nm
- Installation: equipped with mounting eyes for easy installation
- Corrosion-resistant due to high-quality coating and materials

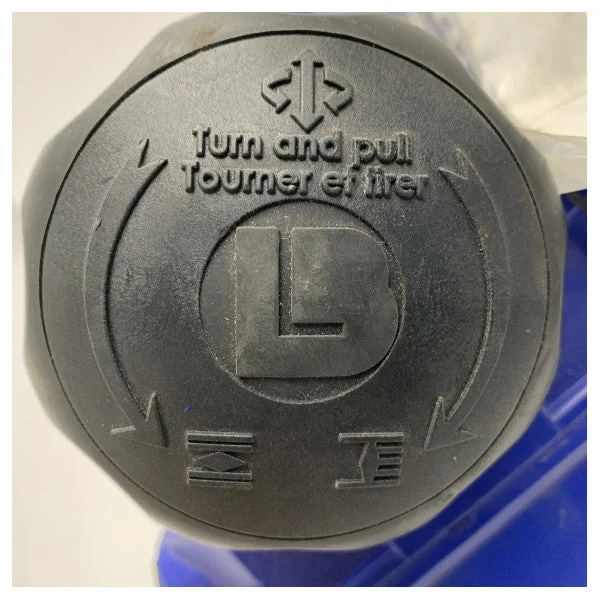

- Ease of use with clear instructions on the actuator (turn and pull)
- Suitable for regulating fluid flows in marine piping systems
