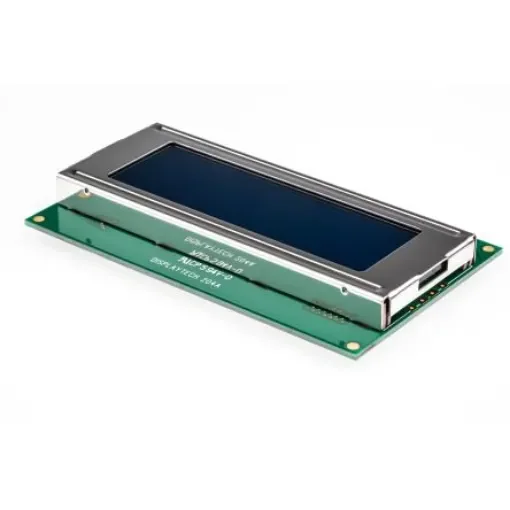

Displaytech 204A-CC-BC-3LP Alphanumeric LCD Display, White on Blue, 4 Rows by 20 Characters, Transflective

Display Type = Alphanumeric
Character Matrix = 4 Rows by 20 Characters
Character Height = 4.8mm
Viewing Area Dimensions = 76 x 25mm
External Depth = 11mm
External Dimensions = 98 x 11 x 60mm
Display Matrix Technology = STN
Minimum Operating Temperature = -10°C

- Observe ANTISTATIC precautions when storing or handling these modules. - Reverse polarity connection to the module will cause irreparable damage. Alphanumeric LCD Displays. Displaytech Reflective ; Transflective LCD Displays STN / FSTN. Displaytech offers a wide range of character LCD /alphanumeric displays. Available in a multitude of LCD and LED backlight colour combinations to help you achieve the perfect look for your product. Combined with a choice of super-twisted nematic display (STN) or Film Compensated STN (FSTN). These display types are popular due to their low power consumption and relative cost when compared with other display technologies. Displaytech also offer a choice of reflective and transflective displays. Transflective displays offer a greater contrast in varied light conditions so are most suited to applications where your product may be used both indoors and outdoors. Reflective = No Backlight Transflective = With Backlight Available in a range of sizes; 16 x 2, 16 x 4, 20 x 2, 20 x 4 and 24 x 2 (characters by rows). - Parallel interface - KS0066U controller (COG versions use the NT603H controller) - -10 °C to 60 °C operating temperature range. 16 x 1 Character LCD Displays Displaytech 161A-BA-BC Reflective STN Yellow on Green - No Backlight (RS ; 532-6335 532-6335 ) Displaytech 161A-BC-BC Transflective STN Yellow on Green (RS ; 532-6341 532-6341 ) 16 x 2 Character LCD Displays Displaytech 162B-BC-BC Transflective STN Yellow on Green (RS ; 532-6379 532-6379 ) Displaytech 162C-BC-BC Transflective STN Yellow on Green (RS ; 532-6414 532-6414 ) Displaytech 162C-BA-BC Reflective STN on Green - No Backlight (RS ; 532-6408 532-6408 ) Displaytech 162COG-BA-BC Reflective STN Yellow on Green - No Backlight (RS ; 532-6559 532-6559 ) Displaytech 162D-BA-BC Reflective STN Yellow on Green (RS ; 532-6470 532-6470 ) Displaytech 162D-BC-BC Transflective STN Yellow on Green (RS ; 532-6486 532-6486 ) Displaytech 162B-CC-BC-3LP Transflective STN White on Black (RS ; 532-6385 532-6385 ) Displaytech 162C-CC-BC-3LP Transflective STN White on Blue (RS ; 532-6436 532-6436 ) Displaytech 162D-CC-BC-3LP Transflective STN White on Black (RS ; 532-6492 532-6492 ) Displaytech 162F-CC-BC-3LP Transflective STN White on Blue (RS ; 532-6521 532-6521 ) Displaytech 162C-GC-BC-3LP Transflective STN White on Black (RS ; 532-6442 532-6442 ) Displaytech 162F-FC-BC-3LP Transflective FSTN Yellow on Green (RS ; 532-6537 532-6537 ) 16 x 1 Character LCD Displays Displaytech 161A-BA-BC Reflective STN Yellow on Green - No Backlight (RS ; 532-6335 532-6335 ) Displaytech 161A-BC-BC Transflective STN Yellow on Green (RS ; 532-6341 532-6341 ) 16 x 2 Character LCD Displays Displaytech 162B-BC-BC Transflective STN Yellow on Green (RS ; 532-6379 532-6379 ) Displaytech 162C-BC-BC Transflective STN Yellow on Green (RS ; 532-6414 532-6414 ) Displaytech 162C-BA-BC Reflective STN on Green - No Backlight (RS ; 532-6408 532-6408 ) Displaytech 162COG-BA-BC Reflective STN Yellow on Green - No Backlight (RS ; 532-6559 532-6559 ) Displaytech 162D-BA-BC Reflective STN Yellow on Green (RS ; 532-6470 532-6470 ) Displaytech 162D-BC-BC Transflective STN Yellow on Green (RS ; 532-6486 532-6486 ) Displaytech 162B-CC-BC-3LP Transflective STN White on Black (RS ; 532-6385 532-6385 ) Displaytech 162C-CC-BC-3LP Transflective STN White on Blue (RS ; 532-6436 532-6436 ) Displaytech 162D-CC-BC-3LP Transflective STN White on Black (RS ; 532-6492 532-6492 ) Displaytech 162F-CC-BC-3LP Transflective STN White on Blue (RS ; 532-6521 532-6521 ) Displaytech 162C-GC-BC-3LP Transflective STN White on Black (RS ; 532-6442 532-6442 ) Displaytech 162F-FC-BC-3LP Transflective FSTN Yellow on Green (RS ; 532-6537 532-6537 )
