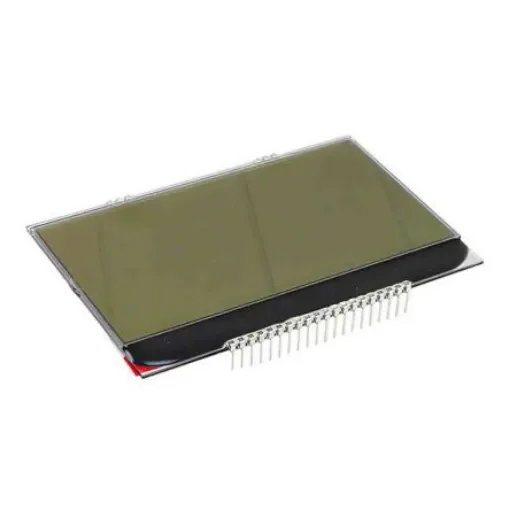

Display Visions EA DOGXL240W-7 EA DOG LCD Display
Compact EA DOG LCD Display with high contrast and multiple interface options for easy integration.
Manufacturer part number: EA DOGXL240W-7
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Character Rows = 240
Interface Type = I2C, SPI
Backlight Type = LED
Controller Type = UC1611S
Display Matrix Technology = FSTN
Voltage Rating = 3.3V
Series = EA DOGµA
The Electronic Assembly EA DOG series presents the world’s first display series which will run on 3.3 V systems without auxiliary power. It is extremely compact at 66 x 40 mm at the standard font size of 4.8 mm (4 x 10). It is ultra-flat at 2.0 mm without backlight or 5.8 mm including LED backlight and it has 4-bit, 8-bit SPI and I²C interface. It can be easily installed by simply soldering into the board.Controller UC1611 with integrated graphic RAM. High contrast LCD supertwist display (STN AND FSTN) with 15µm dot gap LED backlighting 10 to 150mA No mounting required because it can be soldered directly onto PCB.
