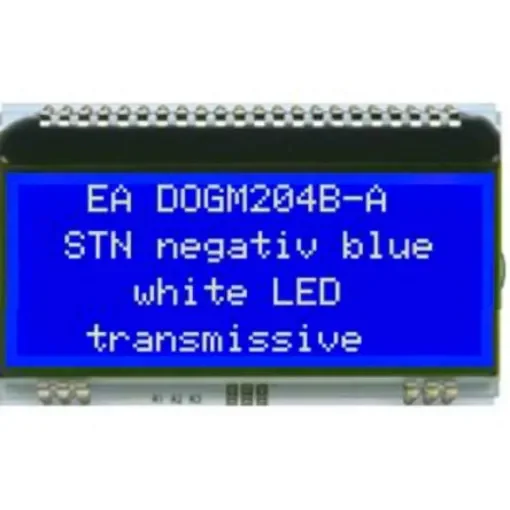

Display Visions EA DOGM204B-A EA DOG LCD Display, Blue on Blue

Character Rows = 4
Character Width = 4.8mm
Viewing Area Height = 22mm
Interface Type = I2C, SPI
Dimensions = 66 x 38 x 3.6
Background Colour = Bluemm
Height = 29mm
Controller Type = SSD1803A
Display Matrix Technology = STN
Voltage Rating = 3.3V
Current Rating = 250µA

The Electronic Assembly EA DOG series presents the world’s first display series which will run on 3.3 V systems without auxiliary power. It is extremely compact at 66 x 40 mm at the standard font size of 4.8 mm (4 x 10). It is ultra-flat at 2.0 mm without backlight or 5.8 mm including LED backlight and it has 4-bit, 8-bit SPI and I²C interface. It can be easily installed by simply soldering into the board.4x20 character with 4.8 mm height. No mounting required, simply solder into PCB LED backlight 3 through 80mA at 3.3V or 2 through 40mA at 5V
