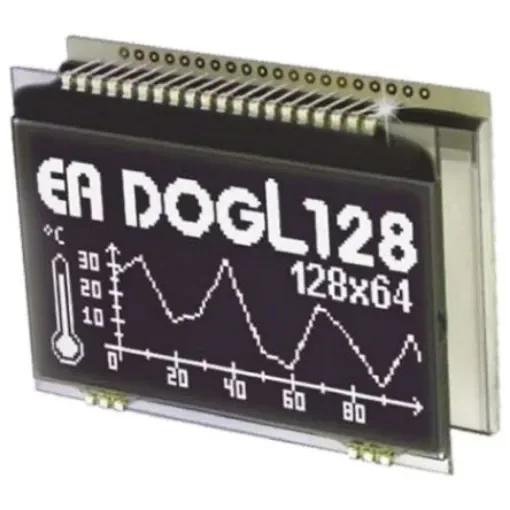

Display Visions EA DOGL128S-6 Graphic LCD Display, Green, RGB, White on Black, Transmissive
High-contrast graphic LCD display with low power consumption, ideal for handheld applications.
Manufacturer part number: EA DOGL128S-6
GTIN: 5059045857228
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Display Type = Graphic
Character Rows = 4, 8
Resolution = 128 x 64pixels
Viewing Area Height = 35mm
Interface Type = SPI
External Depth = 2.8mm
Illumination Colour = Green, RGB, White
External Dimensions = 48 x 67.8 x 2.8mm
Controller Type = ST 7565R
Display Mode = Transmissive
Minimum Operating Temperature = -20°C
Driver Mounting = PCB Mount°C
FSTN negative and STN negative display modules (displays with Black or Blue backgrounds) can only be used with a LED backlight fitted, such as stock no. ; 758-8737 758-8737. EA DOG Series of Monochrome Graphic Display Modules, Electronic Assembly. The EA DOG series of monochrome graphic display modules, from Electronic Assembly, was specially developed for low-power hand-held applications; allowing these display modules to be operated at 3.3V. Optional LED backlights (such as stock no. ; 758-8664 758-8664 ) can simply be clipped to the display modules to create different effects, see datasheet for details. An evaluation board ( 9780-2USB) is available for use with DOG series display modules, see stock no. ; 758-8831 758-8831. Ultra thin high contrast LCD supertwist displays with 15µm dot gap Solders directly into the PCB without any further assembly required Single 3.3V power supply
