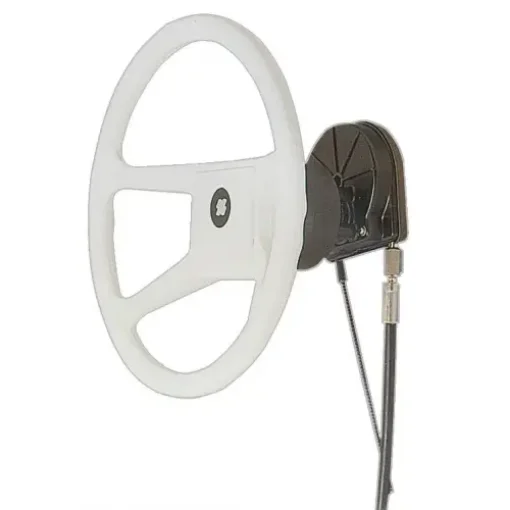

Steering System T67 - Ultraflex
For outboard motors up to 55 hp, except for EVINRUDE E-TECâ„¢ 50 where the use of T85 is recommended.
Usable with Morse cables C230/231, Teleflex, Compact, TX805.
The T67 steering system includes only in its box, the housing with clutch and the 90° black cap.It does not include the Steering Wheel and M58 steering cables which are optional.
Technical Specifications
Cable ends on the engine side made of stainless steel according to ABYC P17 standard
Housing made of materials resistant to marine corrosion
Externally adjustable friction
90° installation
4 different mounting positions to allow the most suitable cable exit
Steering wheel turns: approximately 2.5
Actuation stroke: 230 mm
Maximum steering wheel diameter: 380 mm
Minimum cable bend radius: 200 mm
Complies with EN 29775 standard
