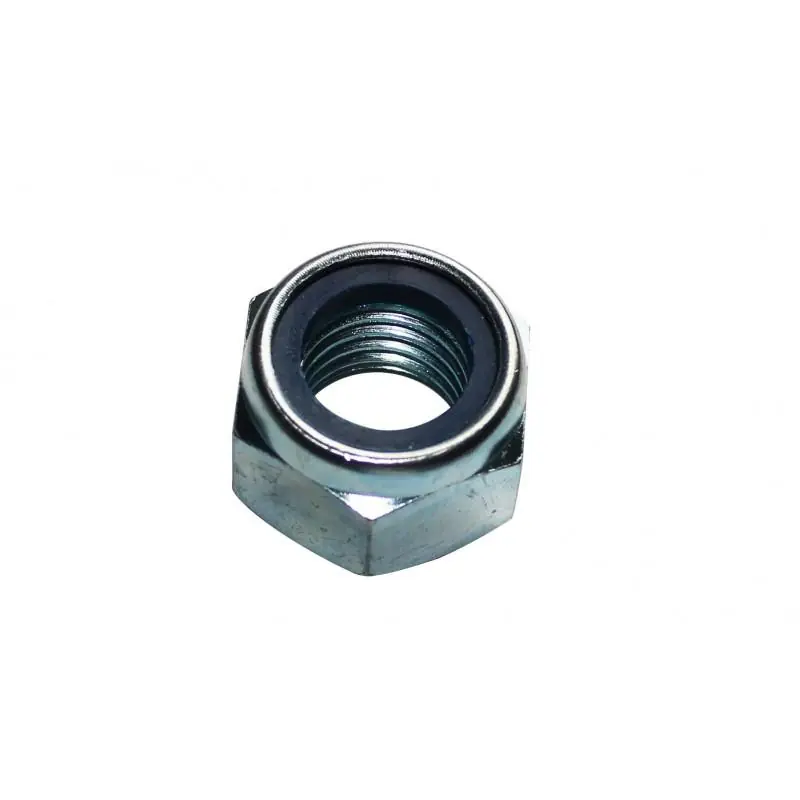

The Hexagon Nut with Nylon Insert, Zinc Plated, conforms to DIN 985 standards, offering a self-locking mechanism to prevent loosening due to vibrations. This design is particularly beneficial in applications subjected to dynamic loads.
Key Features:
- Self-Locking Mechanism: Incorporates a nylon insert that deforms to create a frictional lock, enhancing resistance to loosening.
- Corrosion Resistance: Zinc plating provides a protective layer against corrosion, extending the nut's service life.
- High-Strength Steel Construction: Manufactured from steel with a strength class of 10, ensuring durability and reliability.
Technical Specifications:
- Thread Type: Metric
- Thread Pitch: Available in various pitches, including 0.7, 0.8, 1.0, 1.25, 1.5, 1.75, and 2.0 mm, depending on the nut size.
- Strength Class: 10
- Coating: Electro-galvanized zinc plating
Materials:
- Nut Body: High-strength steel
- Insert: Polyamide (Nylon)
Dimensions:
| Thread Size (M) | Pitch (mm) | Width Across Flats (mm) | Height (mm) | Nylon Insert Height (mm) |
|---|
| M6 | 1.0 | 11.05 | 6 | 5 |
Compatibility Information:
These nuts are compatible with standard metric threaded bolts and screws, adhering to DIN 985 standards. The nylon insert ensures a secure fit, making them suitable for applications where vibration-induced loosening is a concern.
