Desco Europe Wrist & Foot ESD Tester - 99038

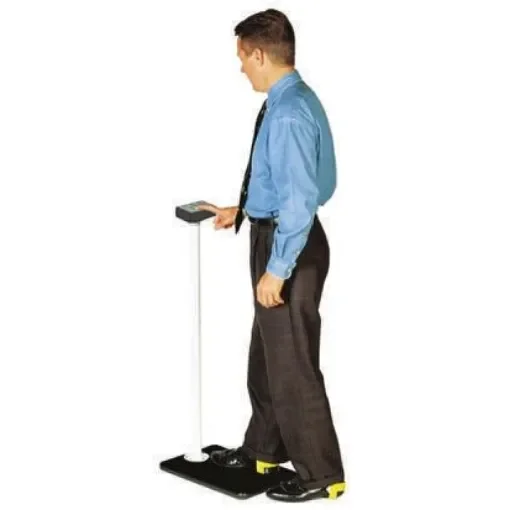

Desco Europe Wrist Strap Footwear TesterThe Desco Europe Wrist Strap footwear tester equipment determines an operator’s wrist strap and footwear will function correctly. It is a 3-state touch tester designed for fast, frequent testing of ESD personnel grounding devices. The equipment includes a rocker switch, green, red and yellow light switch indicator. A rocker switch allows the operator to select a wrist strap or footwear test. A green light indicates that the wrist strap or footwear is passing. Red and yellow lights plus an audible alarm indicates when the wrist strap or footwear is failing. Supplied with: 1 combo tester 1ft plate ground wire, 5in 1 80020 banana plug/10mm adapter 1 9V battery 1ft plate 1 pedestal 3 button head screws, 1/4-20 x 3/4in 1 Allen wrench, 5/32in 1 Flathead screw, 8-32 x 5/8in 1 Knurled nut, 8-32 1 Blackcap 1 poster 1 certificate of calibration Note: Once the 80020 has been put into the plug socket, it cannot be removed Note: Ideally suited for testing foot grounding devicesFeatures and BenefitsResistance measurement accuracy is ±10% Resistance range between <1 x 10³ohms and>1 x 10¹²ohms Under load voltages of 10V and 100V ±5% Electrification period of approximately 15 secondsApplicationsElectrical cabling Factory automation
