CLIPPER DUET Combined - Speed & Depth Display
The CLIPPER DUET display features a sonar and a speedlock in the same device.
It displays speed and depth thanks to the through-hull sensors (included in the package), making it an economical package.
The display screen offers exceptional readability thanks to a backlit screen with 7 brightness levels and 32 mm digits.
It displays:
- the speed in knots, mph or km/h
- the distance in miles, nautical miles and km.
150KHZ DEPTH SONAR
This through-hull sonar has been specially designed for NASA MARINE's CLIPPER sonars.
With its frequency of 150 KHz, it helps to know the depth of seabeds up to 100m.

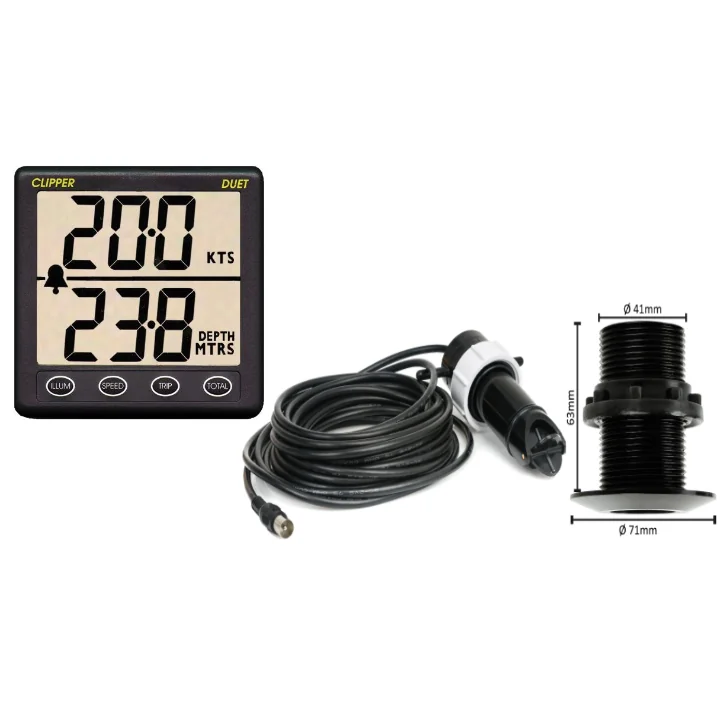

In the box:
- Duet Clipper Display
- Speedlock sensor + 41mm through-hull for the speedlock
- Through-hull depth sounder, with 6.5 m cable and connector.
The depth sounder is supplied without a through-hull which is optional:
- Installation CD
- Protective cover
Technical specifications
- Waterproof front
- Digit size: 32mm
- Depth trend indications
- Speed indication in knots, mph or km/h
- Daily and total distance in miles, nautical miles and km
- Maximum speed alarm
- Shallow and deep alarm
- Automatic or manual sensitivity adjustment
- 7 levels of backlighting
- Automatic and manual calibration
- High and low alarms, visual and audible
- Low consumption 20 mA
- Dimensions (mm) : 110 x110
- Gross weight : 1.40
