Delta-Mobrey Liquid Level Switch Level Switch, SPST Output, Side Mount, Aluminium Bronze Body - S01DB/F68/1
Reliable side mount liquid level switch with SPST output for industrial applications.
Manufacturer part number: S01DB/F68/1
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Liquid Level Switch
Mounting Type = Side Mount
Switch Output = SPST
Body Material = Aluminium Bronze
Maximum Operating Temperature = +210°C
Maximum Current = 2 A dc, 5 A ac
Maximum Pressure = 18bar
Gasket Material = Non Asbestos Sheet

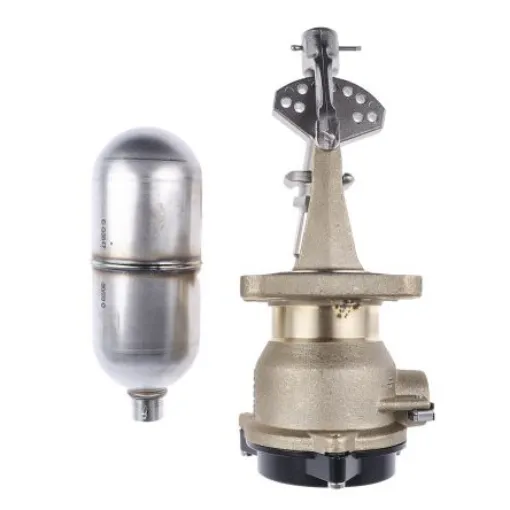

Mobrey Float SwitchThe Mobrey horizontal float switch consists of one-piece cast aluminium bronze body and 316 stainless steel float with a long straight arm. It is a side mounting magnetically activated liquid level switch. The switch is ideal for use in industrial applications, including pump control and as a low or high-level alarm.Features and BenefitsThe maximum current is 2A (DC) and 5A (AC) Tough, rugged design for long life in aggressive environments Operates in almost any liquid Variable differential to adjust switching point Two off independent SPST voltage-free contacts (’snap action’) for alternative make and break circuits No contact ’hover’ or ’bounce’ for clean make or break M20 conduit entry with supplied cable gland (cable not supplied) Switch mechanism electrical with 2 independent single pole single throw (SPST) contact sets The enclosure is made of aluminium bronze Float standards is horizontal variable differential for pump control/alarm, 316 SST, minimum SG 0.72, 500 psi (34.5 bar)CertificationsIP66 rated
