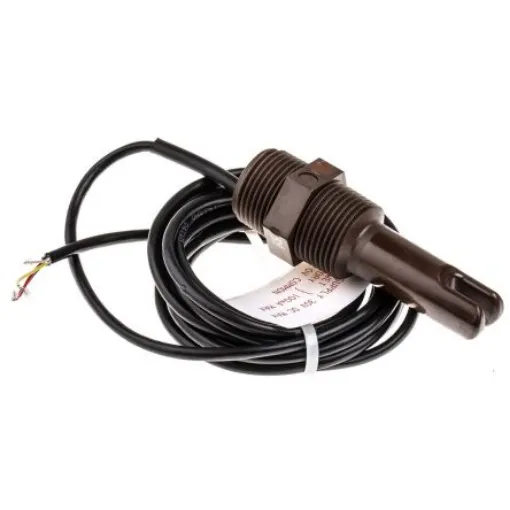

Delta-Mobrey Gap Sensor Level Alarm Switch Level Switch, FET Output, Horizontal, Vertical, Polyphenylene Sulfide Body - 003H2

Device Type = Gap Sensor Level Alarm Switch
Mounting Type = Horizontal, Vertical
Switch Output = FET
Body Material = Polyphenylene Sulfide
Cable Length = 3m
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +105°C
Maximum Current = 100 mA
Maximum Pressure = 5bar

Mobrey Ultrasonic Level SwitchThe Mobrey Integral ultrasonic level sensor switch is intended for level detection at a fixed point when liquid fills the gap between the crystals. It has polyphenylene sulphide construction and two open-drain FET transistors (one conducting when the sensor is wet and the other conducting when the sensor is dry) output type. This switch It has electric voltage ranging between 18VDC/AC and 30VDC/AC. Note: If the liquid to be monitored is flowing, the device should be fitted with the gap inline with the flow. In storage tanks, it should be fitted with the gap vertical unless the liquid is highly aerated when it should be angled.Features and BenefitsVessel pressure is 5bar (maximum) Wet switching level detection at a fixed point when liquid fills the gap between the crystals Switched voltage is 30VDC (maximum) Suitable for low maintenance applications High reliability with no moving parts Not easily subject to fouling and not affected by ambient light conditions Fitted with 3m cableApplicationsLow level alarms in header tanks Pump control duty in feeder tanks High and low alarms in storage tanks Level and pump control in storage tanks Small or thin wall tanks Bund level detection Steering gear oil
