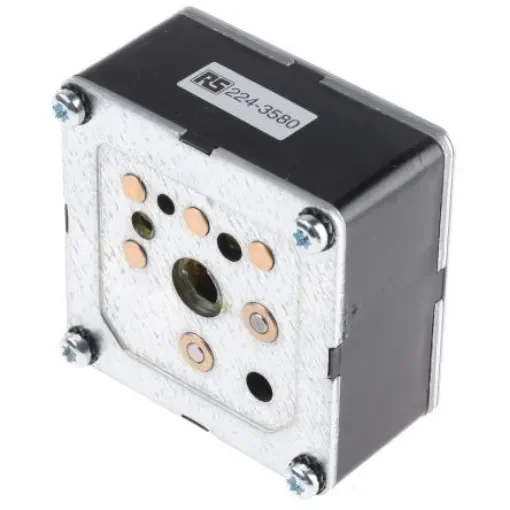

Crouzet Spur Gearbox, 500:1 Gear Ratio, 5 Nm Maximum Torque - 81037005
High-performance Crouzet spur gearbox with 500:1 gear ratio and 5 Nm maximum torque.
Manufacturer part number: 81037005
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Gear Ratio = 500:1
Gearbox Type = Spur
Maximum Output Torque = 5 Nm
Shaft Diameter = 8mm
Overall Length = 65mm
Overall Width = 65mm
Overall Depth = 32mm
For applications where stall conditions may occur, it is recommended that a current limiter is fitted to this combination. 32 ; 42mm Diameter Motors ; Gearboxes. Low to medium power dc. motors fitted with a square mounting flange, centring bush and drive pinion. This allows simple and quick attachment to a 65mm square gearbox. All motors have sintered bronze bearings lubricated for life 32mm diameter motors have built-in interference suppression, whilst the 42mm diameter motors have replaceable motor brushes (stock no. ; 320-613 320-613 ) Gearboxes have metal end plates, with a plastic body between and metal gears. The user can select the appropriate combination of motor voltage, power and gearbox output speed which meets their requirements Gearbox dimensions: height 65mm x width 65mm, shaft diameter 8mm
