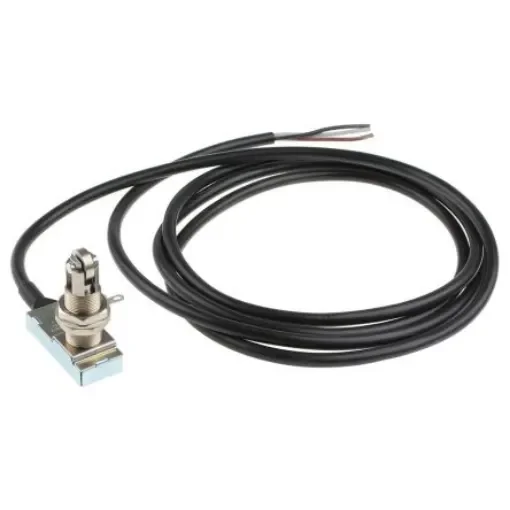

Crouzet Roller Plunger Limit Switch, NO/NC, IP56, SP, 250V ac Max, 5A Max - 83732329

Actuator Type = Roller Plunger
Pole and Throw Configuration = SP
Normal State Configuration = NO/NC
IP Rating = IP56
Maximum Current = 5A
Maximum AC Voltage = 250V
Connection Type = Cable
Length = 49.5mm
Minimum Operating Temperature = -5°C
Mechanical Life = 1000000Cycles

CSA. Thermal current (Ith) 12 A Assigned operating current (Ie) 5A at 250V Minimum operating travel of 0.2mm Temperature range -5 to +70 deg C 3 Terminal single pole form C changeover contacts 0.5M 3 core cable fitted, 0.75mm ;sup>2 ;/sup> conductors Hermetically sealed pushbutton limit switch, NO/NC Mechanical life 1 000 000 operations
