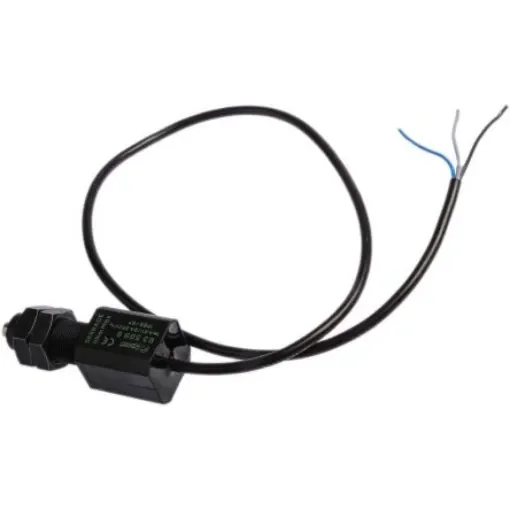

Crouzet Plunger Limit Switch, NO/NC, IP66, IP67, SP, Thermoplastic Housing, 250V ac Max, 5A Max - 83589801
Reliable Crouzet limit switch designed for severe environments with dual-current capability.
Manufacturer part number: 83589801
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Length = 70mm
Width = 25mm
NFC 20030 Class I. Note: Mechanical life refers to 200mA at 24Vdc, and will reduce with higher currents and voltages. Limit Switch for Severe Environments with Cable. This dual-current limit switch is designed to operate on both dual current (1mA 4V min.) and medium current (5A) circuits and should only be used to switch one type of circuit during its working life. Press button protected by 'o' ring and scraper 8A at 250V 10 N operating force 15 N minimum total travel force Differential travel 0.1mm, maximum travel 4.5mm 3 core cable (black,grey,blue) 0.5 metres in length with 0.75mm ;sup>2 ;/sup> conductors, PVC coated 5mm outer diameter Temperature range -40 to +85° C Single break two-way contact element Mechanical life 10 000 000 operations 80 grams in weight
