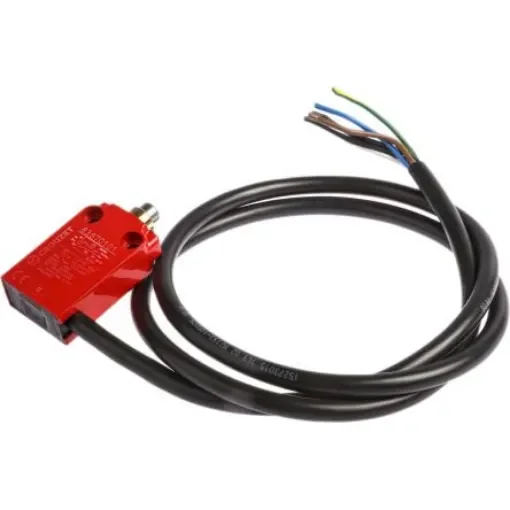

Crouzet Plunger Limit Switch, NO/NC, IP66, IP67, Metal Housing, 240V ac Max, 6A Max - 83870101

Actuator Type = Plunger
Normal State Configuration = NO/NC
IP Rating = IP66, IP67
Maximum Current = 6A
Housing Material = Metal
Maximum AC Voltage = 240V
Maximum DC Voltage = 125V
Connection Type = Cable
Action Type = Snap Action
Length = 69.9mm
Minimum Operating Temperature = -25°C

UL508, UL50. Dimensions refer to limit switch body only. Compact Metal Limit Switch with Cable Output. Metal cased limit switches complete with fitted 5 core 0.75mm ;sup>2 ;/sup> 7.3mm ext. dia.cable and four terminal double break two-way contact elements with positive opening contacts which are electrically isolated from one another. Impulse voltage 2500V Insulation voltage 500V Thermal Current (Ith) 10A Minimum load switching voltage 10V Minimum load switching current 10mA Temperature range -25 to +70 deg C Minimum current switching load 100mA 1 Metre cable length 20mm pitch mounting holes IP66/67
