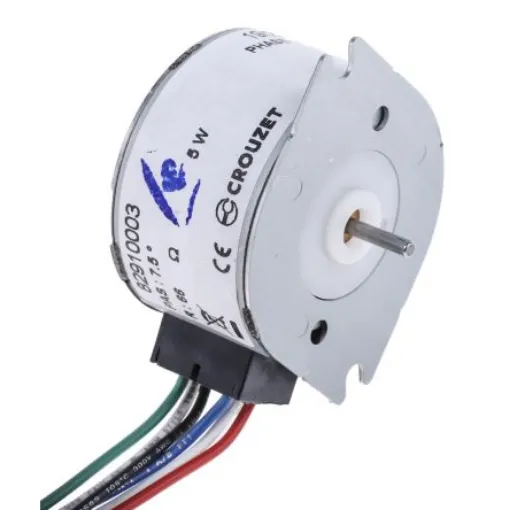

Crouzet Permanent Magnet Stepper Motor, 20mNm Torque, 12.7 V, 7.5°, 2mm Shaft - 82910003
High-performance Crouzet stepper motor with 20mNm torque and 12.7V supply for precise control.
Manufacturer part number: 82910003
GTIN: 3593150031545
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Stepper Motor Type = Permanent Magnet
Step Angle = 7.5°
Holding Torque = 20mNm
Number Of Wires = 6
Supply Voltage = 12.7 V
Shaft Diameter = 2mm
Current Rating = 190 mA
Winding Arrangement = Unipolar
Shaft Length = 7.8mm
Depth = 21.7mm
Number of Pole Pairs = 2
Resistance Per Phase = 66O
7.5° and 15° Stepper Motors. Permanent magnet four-phase hybrid stepper motors with 7.5 or 15° step angles. The motors have 6-lead connections and are consequently suitable for use with either unipolar or bipolar drives.
