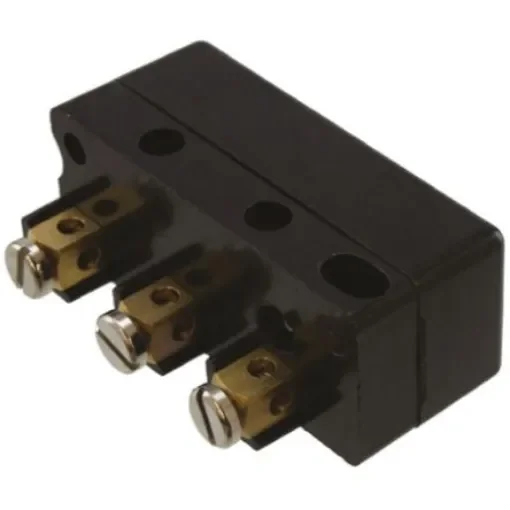

Crouzet Lever Limit Switch, NO/NC, SP, Plastic Housing, 250V ac Max, 17.5A Max - 83118007
Reliable Crouzet lever limit switch with NO/NC configuration, perfect for various applications.
Manufacturer part number: 83118007
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Actuator Type = Lever
Pole and Throw Configuration = SP
Normal State Configuration = NO/NC
Maximum Current = 17.5A
Housing Material = Plastic
Maximum AC Voltage = 250V
Connection Type = Screw
Length = 29.4mm
Width = 43mm
Mechanical Life = 5 x 1000000Cycles
CSA. Thermal current (Ith) 12 A Assigned operating current (Ie) 5A at 250V Minimum operating travel of 0.2mm Temperature range -5 to +70 deg C 3 Terminal single pole form C changeover contacts 0.5M 3 core cable fitted, 0.75mm ;sup>2 ;/sup> conductors Hermetically sealed pushbutton limit switch, NO/NC Mechanical life 1 000 000 operations
