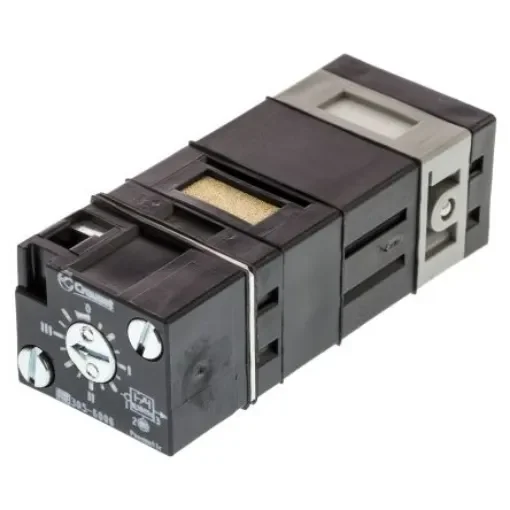

Crouzet 81 series 0.1s to 15s Pneumatic Timer, 8 bar max - 81506710
Adjustable pneumatic timer with a delay range of 0.1s to 15s for precise control.
Manufacturer part number: 81506710
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Maximum Time = 15s
Minimum Time = 0.1s
Maximum Operating Temperature = +50°C
Manufacturer Series = 81
Minimum Operating Pressure = 2bar
Maximum Operating Pressure = 8 bar
Minimum Operating Temperature = -5°C
Crouzet Pneumatic TimerThe Crouzet 81 series pneumatic adjustable negative time delay module requires operating pressure ranging between 2bar and 8bar. This timer has a counting range from 0.1 seconds to 15 seconds. On the application of a pilot signal, the reservoir starts to fill via the flow restrictor. After the set time delay the relay is operated and an output is given. This timer will not reset until the pilot signal is removed.Features and BenefitsOrifice diameter is 2.7mm Flow rate at 6bar is 170NL/minute Mechanical operating life is >10^7 Operating temperature ranging between -5°C and 50°CCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
