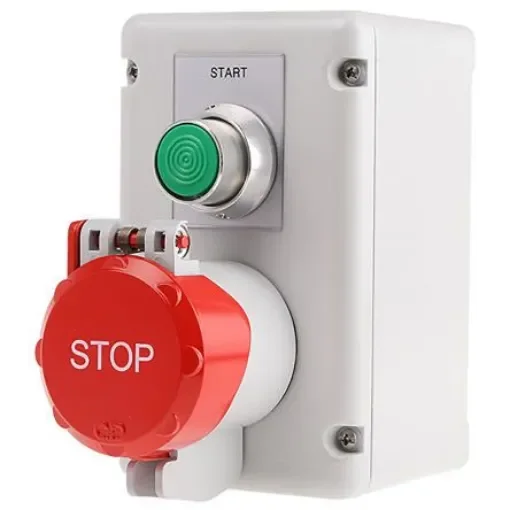

Craig & Derricott Momentary (Start), Pull to Reset (Stop) Push Button Control Station - SPDT, Die Cast Aluminium, - SSTH/GS/P/F3/MG/CO

Series = i-push
Push Button Colour = Green, Red
Push Button Material = Plastic
Enclosure Colour = Grey
Contact Configuration = SPDT
Enclosure Material = Die Cast Aluminium
IP Rating = IP65
Cutout Diameter = 22mm
Push Button Actuation = Momentary (Start), Pull to Reset (Stop)
Length = 167mm
Width = 100mm
Depth = 155mm
Maximum AC Voltage = 690V

Allow for an extra 75mm depth for the swing of the flap. Aluminium Enclosed Pushbutton Stations. Pull to reset push buttons all with coverable flaps to prevent inadvertent reset Heavy duty die-cast aluminium enclosure Suitable for indoor or outdoor applications Stock no. ; 310-3972 310-3972 features a lockable flap which is padlockable and has to be unlocked to reset push button, padlock holes 2x14mm allow several padlocks to be fitted Ingress protection to IP65 1 x M20 tapped conduit entry Screw terminal, block type contacts cable size 2x2.5mm² maximum Standards: BS EN 60947-5-1, BS EN 60947-5-5
