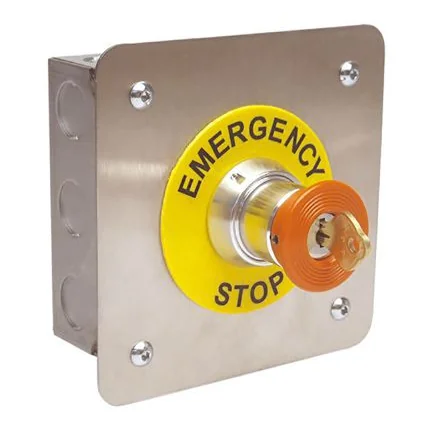

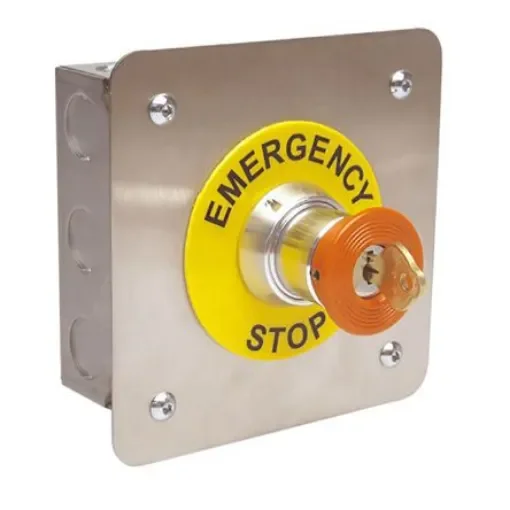

Craig & Derricott Key Reset Control Station Switch - SPDT, Stainless Steel, 9 Cutouts, Red, Emergency Stop, IP65 - EMSH/K/F/CO

Series = i-push
Number of Cutouts = 9
Push Button Marking = Emergency Stop
Push Button Colour = Red
Push Button Material = Plastic
Contact Configuration = SPDT
Enclosure Material = Stainless Steel
IP Rating = IP65
Cutout Diameter = 22mm
Push Button Actuation = Key Reset
Length = 125mm
Width = 125mm
Depth = 52mm
Maximum Current = 16A

The sealing of the faceplate to the fitting surface is the responsibility of the installer. Flush Mounting Emergency Stop Controls. Stainless steel faceplate with galvertec sheet steel back box for recess into wall cavity Suitable for indoor or outdoor applications Stock no. ; 310-4004 310-4004 features a lockable flap which is padlockable and has to be unlocked to reset pushbutton Ingress protection to IP65 Screw terminal, block type contacts, cable size 2x2.5 mm² maximum Standards: BS EN 60947-5-1, BS EN 60947-5-5
