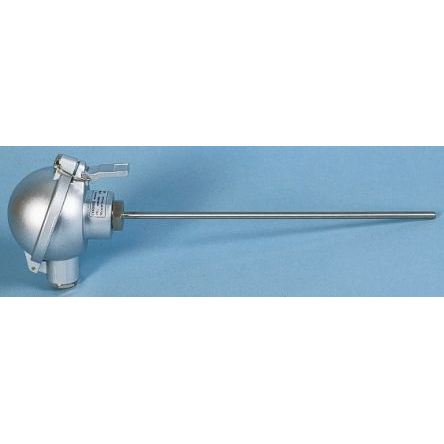

Correge PT100 RTD Sensor, 6mm Dia, 250mm Long, 2 x 3 Wire, Probe, Classe A +500°C Max ATEX - CSIF/250/2XPT100/CLA/316L/D6
High-performance PT100 RTD sensor with ATEX certification for reliable temperature measurement up to +500°C.
Manufacturer part number: CSIF/250/2XPT100/CLA/316L/D6
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Sensor Type = PT100
Probe Length = 250mm
Probe Diameter = 6mm
Maximum Temperature Sensed = +500°C
Termination Type = Connection Head
Cable Length = 22.7mm
Probe Material = Inox 316L
Cable Entry Size = M20
Hazardous Area Certification = ATEX
Accuracy = Classe A
EEx ia IIC T6 certified. Intrinsic safety Pt 100 temperature sensors. Sensors with one or two Pt 100, Class A as per IEC751. 3-wire or 2 x 3 wire fitting. 316L stainless steel protected with hard-packed MgO insulation. Type A DAN connection head with BLS terminal block and PG16 cable gland output.
