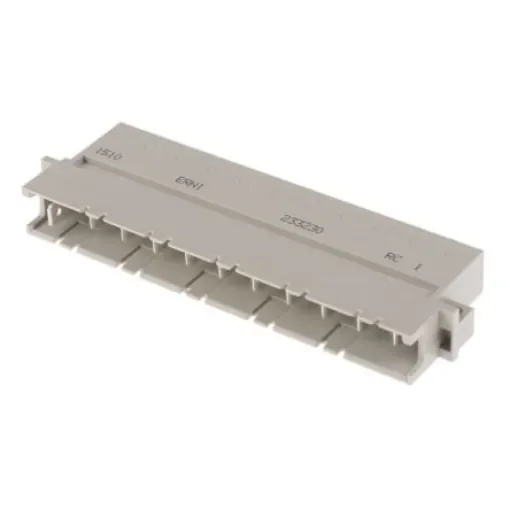

Connector,PCB,high current,DIN41612,type H11,VE32, - 233230 / 233230-E

UL,CSA. Type H. High-current plug connectors for supplying power to assemblies. Type H supports a current of15 A at 70 °C For free wiring, the female connectors have all-round insulated chambers for the 6.3 x 0.8 Faston terminal Dip-solder and press-fit versions are available for use on a bus board H11 has a single row with max. 11 contacts H15 has a double row with up to 15 contacts The contacts of the H11 and H15 type plug connectors are silver-plated and conform to quality level 1 in terms of their electrical and mechanical service life. VE= leading contact Predetermined breaking points cause angled solder connections (male connector) to break, blade terminals 6.3 x 0.8mm occur at these points
