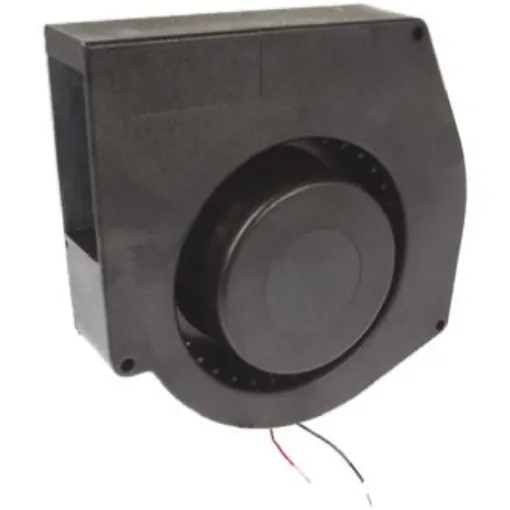

COMAIR ROTRON Spinnaker Series Centrifugal Fan, 24 V dc, 60cfm, DC Operation, 161 x 161 x 50mm - SPD24B1QDN 19032364A
High-performance 24V DC centrifugal fan with 60cfm airflow, ideal for various applications.
Manufacturer part number: SPD24B1QDN 19032364A
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24 V dc
Blower Type = Blower
AC or DC Operation = DC
Air Flow = 60cfm
Series = Spinnaker
Height = 161mm
Width = 161mm
Depth = 50mm
Dimensions = 161 x 161 x 50mm
Fan Speed = 2500rpm
Noise Level = 57dB(A)
Bearing Type = Ball
Mounting Hole Spacing = 127.9 x 144.27mm
Maximum Current = 1.25A
Termination Type = Lead Wiremm
COMAIR ROTRON Radial BlowerThe COMAIR ROTRON spinnaker 24VDC radial blower has an automatic restart capability. It features an electronically locked rotor protection via a current limiter. This makes it ideal for a wide range of applications.Features and BenefitsBrushless DC motor design Polarity protected Airflow is 60cfm Fan speed is 2500rpm Static pressure of 1.1in/H2O Operating temperature ranging between -10°C and 70°CCertificationsUL approved CSA TUV
