Key Features:
- Designed for heavy-duty applications, suitable for flush doors.
- Constructed from high-quality 316 marine-grade stainless steel, ensuring durability and resistance to corrosion.
- Features a clean-lined, triple knuckle butt hinge with a 3mm gap.
- Equipped with self-lubricating phosphor bronze washers, eliminating the need for ball bearings or oil lubricants, thereby preventing potential staining of the door.
- CNC precision-engineered components provide optimal friction for smooth opening and closing, preventing door sagging.
- Ideal for environments with high corrosion levels, such as coastal areas and acidic timber applications.
- Tested for durability up to 100,000 cycles.
- Load-tested to support up to 160kg weight over three hinges.
- Available in a range of finishes to match various aesthetic preferences.
Technical Specifications:
- Material: 316 Marine Grade Stainless Steel
- Design: Triple knuckle butt hinge with a 3mm gap
- Washers: Self-lubricating phosphor bronze
- Load Capacity: Supports up to 160kg over three hinges
- Durability: Tested to 100,000 cycles
- Finishes: Available in multiple finishes
Materials:
- Hinge leaves: 316 Marine Grade Stainless Steel
- Washers: Phosphor Bronze
Dimensions:

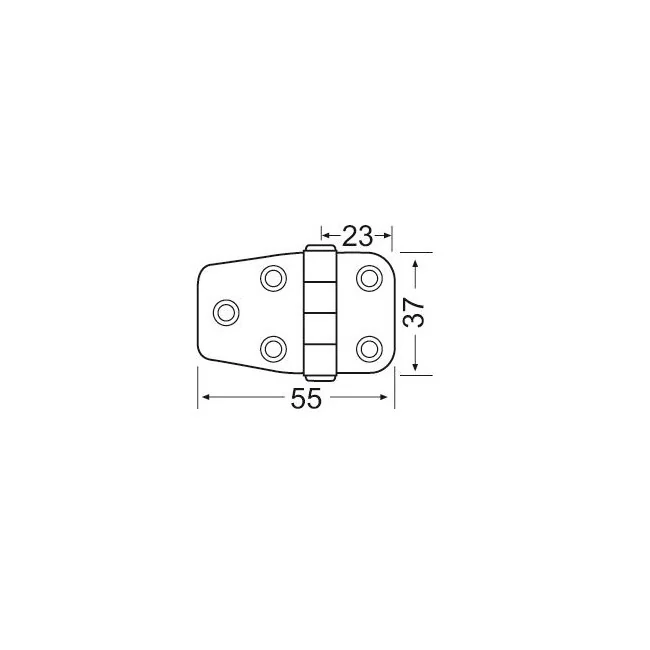

- Hinge Size: 55mm x 37mm
- Projection: Not specified
- Thickness: Not specified
Compatibility Information:
- Suitable for heavy-duty flush doors in environments with high corrosion levels.
- Ideal for use in coastal areas and with acidic timber.
Additional Details:
- Self-lubricating design reduces maintenance needs.
- CNC precision engineering ensures consistent performance.
- Available in various finishes to complement different door styles.
