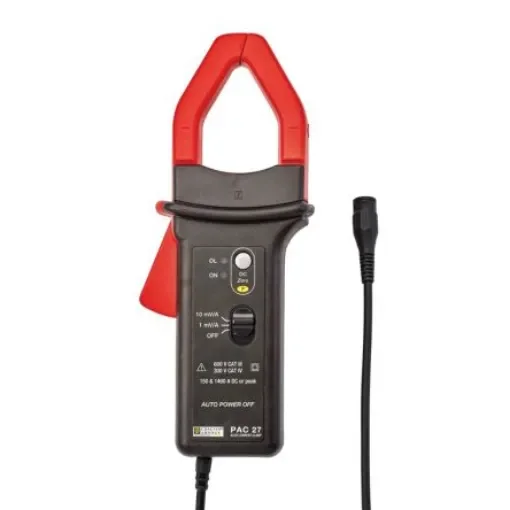

Chauvin Arnoux PAC 27 Current Clamp, 1400A dc DC Max, AC/DC Adapter, 1kA ac AC Max - P01120127

Adapter Type = AC/DC
Maximum DC Current = 1400A dc
Maximum AC Current = 1kA ac
Best Accuracy = 1.5 %
Maximum Conductor Size = 39mm
Safety Category = CAT III 600V, CAT IV 300V
Connector Type = Isolated Male BNC Plug
Maximum Bandwidth = 30kHz
Battery Life = 50 h
Cable Length Extended = 2m
Model Number p = PAC 27°C
Minimum Operating Temperature = -10°C
Safety Category Level = CAT III, CAT IVkHz

The PAC Series is a range of Hall-effect current clamps for measuring direct and alternating currents. 2 forms are proposed to clamp cables up to 39 mm or 2x25.4 mm in diameter, as well as small busbars. The range comprises PAC1x models and PAC2x models for higher currents. When used with an oscilloscope, this isolated current sensor has 2 sensitivities and allows you to view currents with a bandwidth of up to 30 kHz and peak currents up to 1,400 A DC or peak. It is equipped with a simplified ZeroDC adjustment system and a deactivatable automatic standby function.Rated current: 100 AAC/150 ADC - 1,000 A AC/1,400 A DC Output signal: DC and AC voltage Output / input ratio: 10 mV / A, 1 mV / A Output via coaxial cable and isolated BNC male plug
