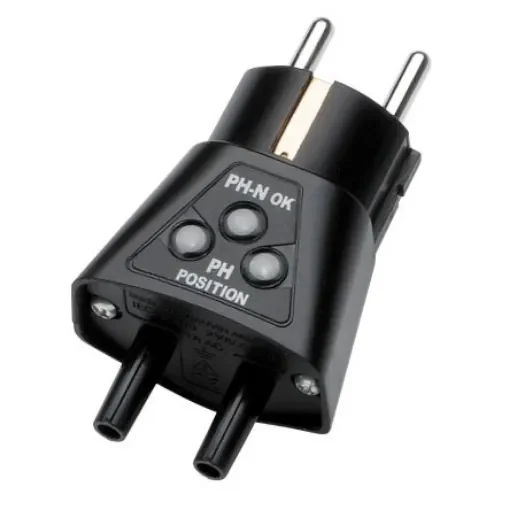

Chauvin Arnoux, Model CA 751 Socket Tester 16A 230V ac CAT II 230 V - P01101997Z

Current Rating = 16A
Voltage = 230V ac
Audible Alarm = No
Number of Pins = 3
Wiring Check = Yes
Display Type = LED
Safety Category = CAT II 230 V
Power Source = Battery
Dimensions = 95 x 50 x 38mm
Weight = 60g
Height = 38mm
Width = 50mm

IEC 61243-3 and IEC 61010 600 V cat. III. C.A 751 Socket tester adapter. The C.A 751 is an adapter which provide aninformation about phasis position and P-N voltagepresence, concerning TN and TT installations types. The C.A 751 is not a tester which allows tovalidate the 2P+T Socket wiring conformity.It's used after to check first the socket earthcontinuity in the installation, with an ohmmeter,insulating the network neutral and the earth (inTN type). Connected with C.A 760/ 765 / 704 testers, theC.A 751 is an adapter for 2 P + E socket for230 V mains circuits. It make easy the test on all European-format 19 mm- spaced 2 P + E power sockets. The C.A 751 complies with the specific instruc-tions for live-line work with a high level ofelectrical safety for qualified users.
