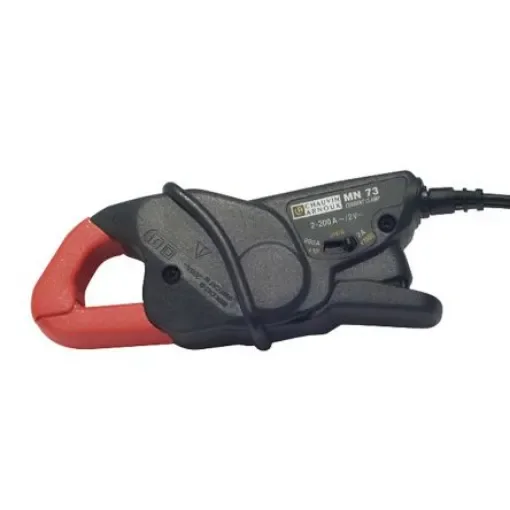

Chauvin Arnoux MN73 Current Clamp, AC Adapter, 200A ac AC Max, Current Output - P01120421
Accurate MN73 Current Clamp measures AC currents up to 200A, ideal for electrical diagnostics.
Manufacturer part number: P01120421
GTIN: 3760171412978
Adapter Type = AC
Maximum AC Current = 200A ac
Best Accuracy = = 1%
Maximum Conductor Size = 20mm
Safety Category = CAT III 600 V, CAT IV 300V
Output Type = Current
Connector Type = 4 mm Safety Plug
Cable Length Extended = 1.5m
Model Number p = MN73°C
Minimum Operating Temperature = -10°C
Safety Category Level = CAT III, CAT IVV
Operating manual. MN73 Current clamp for AC current. The current clamp has a wide measurement range (up to 200 A). The MN73 current clamp can also measure very low currents. Current calibres: 0.01 A AC to 2.4 A AC and 0.1 A AC to 200 A AC Bandwidth:40 Hz to 10 kHz Operating voltage: 600 V rms Max. jaw opening: 20 mm Output: 1.5 m two-wire lead with double or reinforced insulation terminated by 2 elbowed male safety plugs (4 mm) Electrical safety: IEC 1010-1 and IEC 1010-2-032 600 V category III, pollution degree 2 300 V category IV, pollution degree 2
