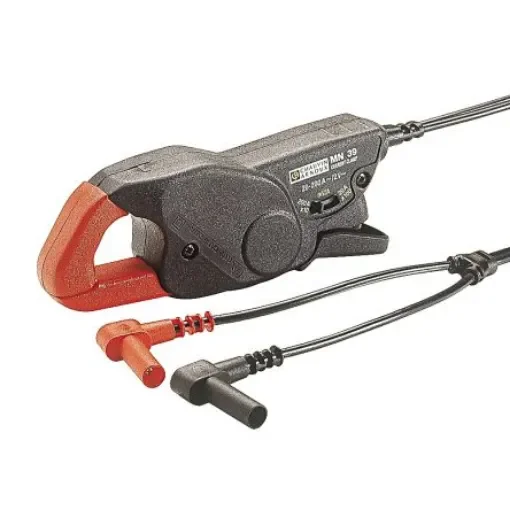

Chauvin Arnoux MN39 Current Clamp, AC Adapter, 240A ac AC Max, Voltage Output - P01120408

Adapter Type = AC
Maximum AC Current = 240A ac
Best Accuracy = ±1 %
Maximum Conductor Size = 20mm
Safety Category = CAT III 600V
Output Type = Voltage
Connector Type = 4 mm Plug
Cable Length Extended = 1.5m
Model Number p = MN39°C
Minimum Operating Temperature = -10°C
Safety Category Level = CAT IIIV

MN Series 200A a.c. Mini Clamps. Single and dual range mini clamps with nominal current measuring range of 0.5A to 200A ac 40Hz to 10kHz bandwidth MN09, MN11 ; MN21 ac current output 1mA ac / 1A ac for use with multimeters ; recorders with a 200mA ac range MN13, MN39 ac voltage output 10mV ac / 1A ac for use with multimeters ; recorders with 200mV ac range. MN39 has a dual 20A/200A range with 0.1A ac minimum measurement Conforms to: IEC1010-2-032 (safety standard) 600V Cat III MN89 dc voltage output 100m Vdc / 1Aac for use with multimeters ; recorders with mV dc and Vdc inputs, advantageous for multimeters as their mV dc ranges are often more sensitive than their ac current ranges Ergonomic jaw design for measurement where access is difficult and allows 'hooking' onto the cable Fitted with a 1.5m flying lead with 4mm shrouded plugs to suit most multimeters Output voltage limiter prevents high output voltage if clamp output becomes open circuited (MN11 ; MN21 only)
