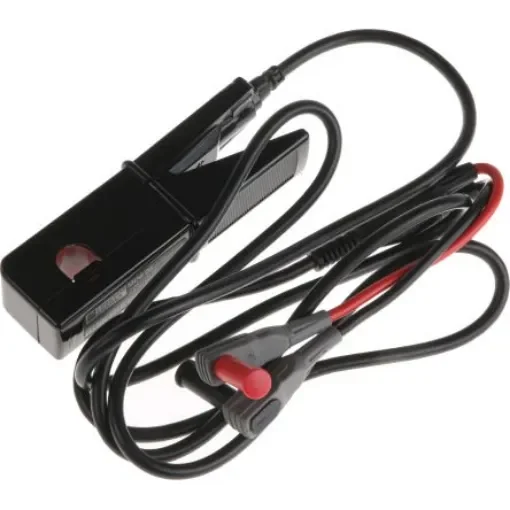

Chauvin Arnoux MINI 05 Current Clamp, AC Adapter, 100A ac AC Max, Voltage Output - P01105105Z
Compact MINI 05 Current Clamp measures AC currents up to 100A, ideal for low-power applications.
Manufacturer part number: P01105105Z
GTIN: 3760171412350
Maximum Conductor Size = 10mm
Safety Category = CAT III 600 V, CAT IV 300V
Connector Type = 4 mm Plug
Cable Length Extended = 1.5m
Maximum Operating Temperature = +50°C
Minimum Operating Temperature = -10°C
Safety Category Level = CAT III, CAT IVV
600 V category III pollution degree 2, 300 V category IV pollution degree 2. Operating manual. MINI 05 Current Clamp for AC Current. Small and compact, the MINI 05 current clamp is the ideal complement for any multimeter to measure AC currents in low-power tertiary or industrial applications. With its 2 calibres, the MINI 05 clamp-on ammeter offers excellent resolution for measuring AC intensities from 5 mA to 100 A.. Current calibre: 10 A AC and 100 A AC Bandwidth: 48 Hz to 500 Hz Output: Double-insulated cable 1.5 m long, terminated by 2 insulated elbowed male banana connectors Ø 4 mm Clamping capacity: Cable Ø max 10 mm
